Passenger compartment component locations (Engine management system)
- Make
- Rover
- Model
- 600 620 Diesel Repair Manual Supplement
- Year
- 1995–1999
- Section
- Description and operation › Passenger compartment component locations
Engine management systemPassenger compartment component locations

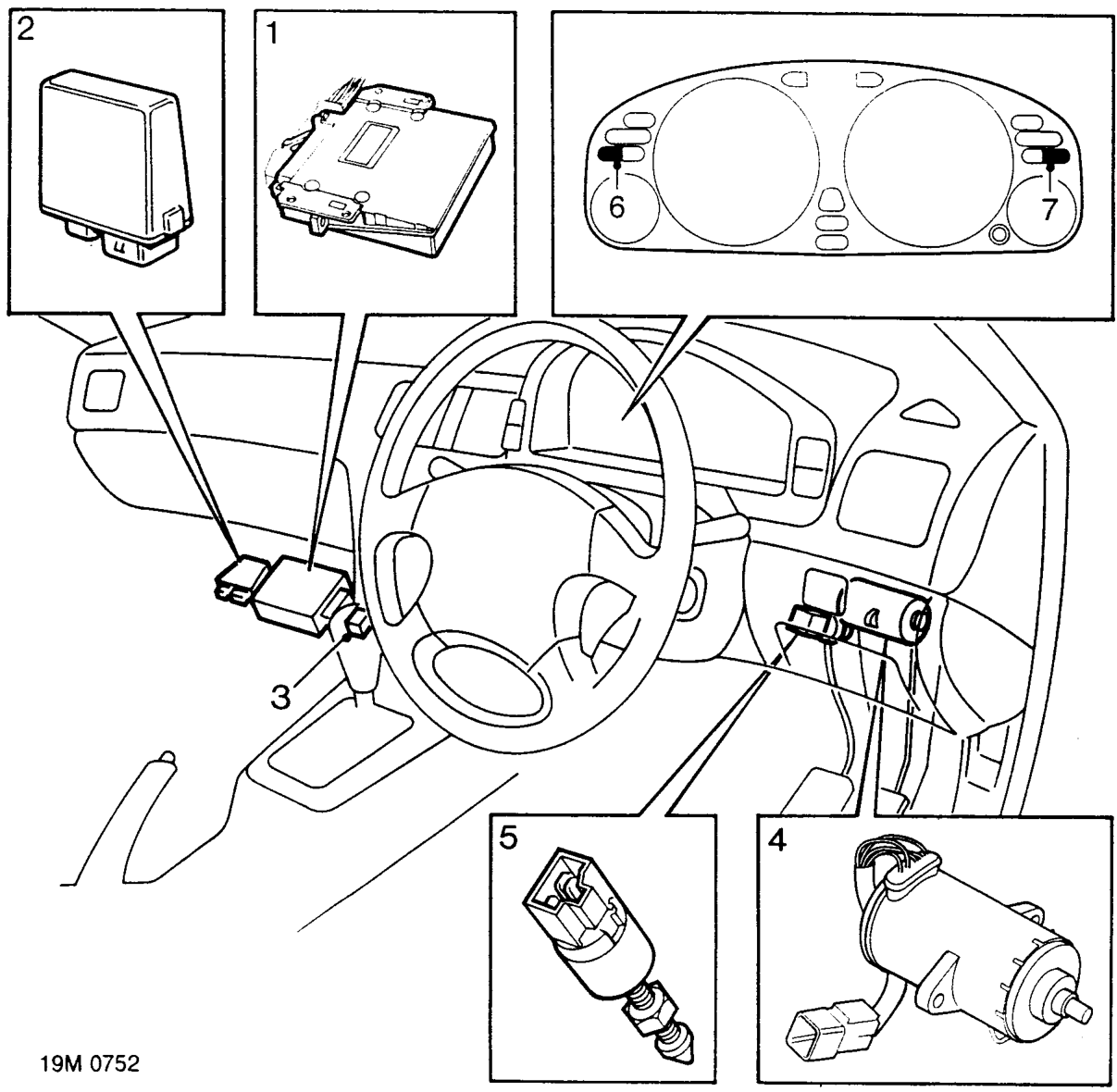

PASSENGER COMPARTMENT COMPONENT LOCATIONS
- Engine Control Module (ECM)
- Cooling fan relay module
- Fuses
- Throttle potentiometer
- Brake pedal switch
- Engine warning light
- Glow plug warning light
