InstrumentsVehicle speed sensor

VEHICLE SPEED SENSOR

Service repair no - 88.30.14

Remove

  1. Disconnect battery earth lead.

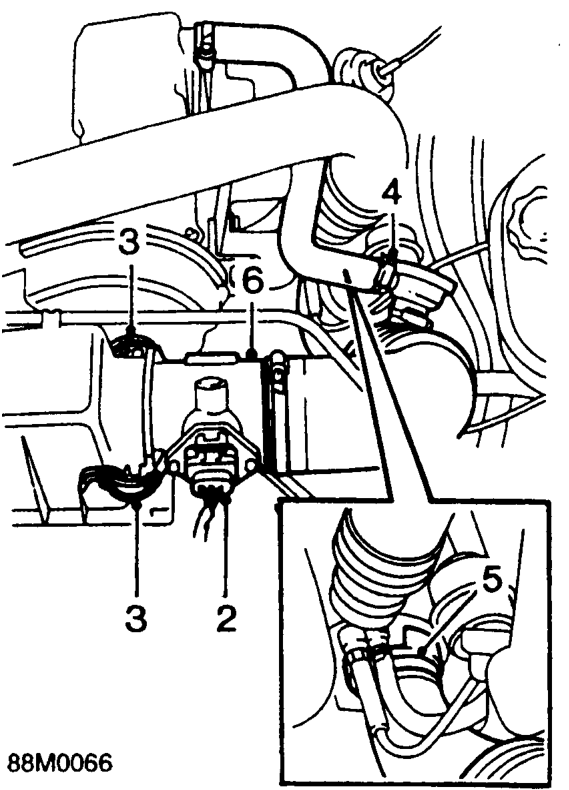

Vehicle speed sensor – Disconnect battery earth lead.
  1. Disconnect multiplug from air flow sensor.
  2. Release 2 clips securing air flow sensor housing to air filter.
  3. Slacken clip and disconnect breather hose to one way valve.
  4. Slacken clip and disconnect air intake hose from turbocharger.
  5. Remove air intake pipe from vehicle.

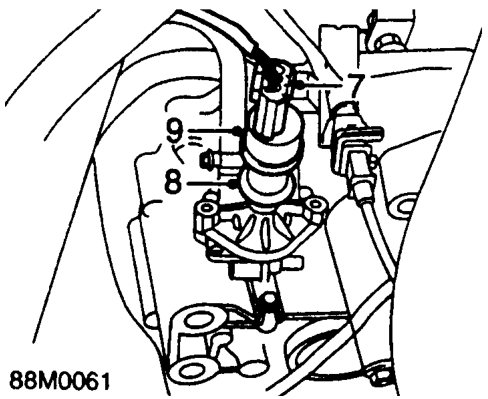

Vehicle speed sensor – Remove air intake pipe from vehicle.
  1. Disconnect multiplug from vehicle speed sensor.
  2. Turn gaiter 90° to disengage clip securing vehicle speed sensor to gearbox.
  3. Remove vehicle speed sensor.
