InstrumentsEngine coolant temperature gauge sensor · page 1 of 2

Refit

  1. Fit vehicle speed sensor to gearbox, rotate gaiter to engage retaining clip in slot on speed sensor.
  2. Connect multiplug to vehicle speed sensor.
  3. Position air intake hose in engine compartment.
  4. Connect air intake hose to turbocharger and tighten clip.
  5. Connect breather hose to one way valve and tighten clip.
  6. Secure air flow sensor housing to air filter with clips.
  7. Connect multiplug to air flow sensor.
  8. Connect both battery leads, earth lead last.

ENGINE COOLANT TEMPERATURE GAUGE SENSOR

Service repair no - 88.25.20

Remove

  1. Disconnect battery earth lead.
Engine coolant temperature gauge sensor – Disconnect battery earth lead.

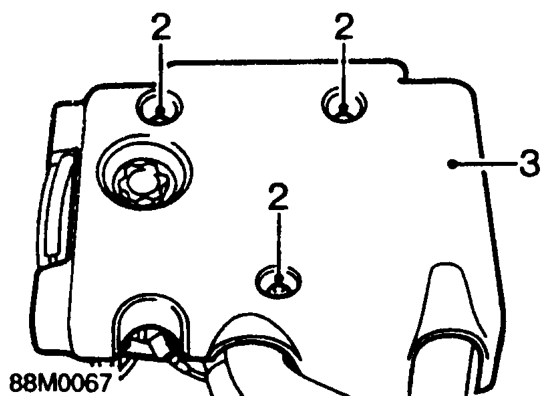

  1. Remove 3 bolts securing sound deadening pad to engine.
  2. Remove sound deadening pad.
  3. Models with air conditioning: Remove alternator. See ELECTRICAL, Repairs.
Engine coolant temperature gauge sensor – Models with air conditioning: Remove alternator. See ELECTRICAL, Repairs.

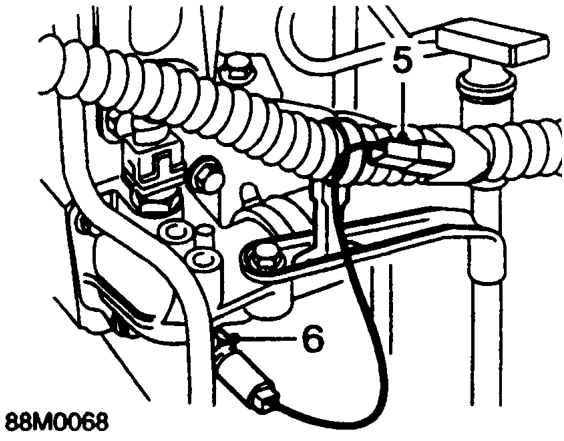

  1. Disconnect Lucar from engine coolant temperature gauge sensor.
  2. Remove engine coolant temperature gauge sensor.
