Circuit diagrams
- Make
- Rover
- Model
- 600 620 Diesel Repair Manual Supplement
- Year
- 1995–1999
- Section
- Engine management system › Circuit diagrams
Wiring diagramsCircuit diagrams
CIRCUIT DIAGRAMS

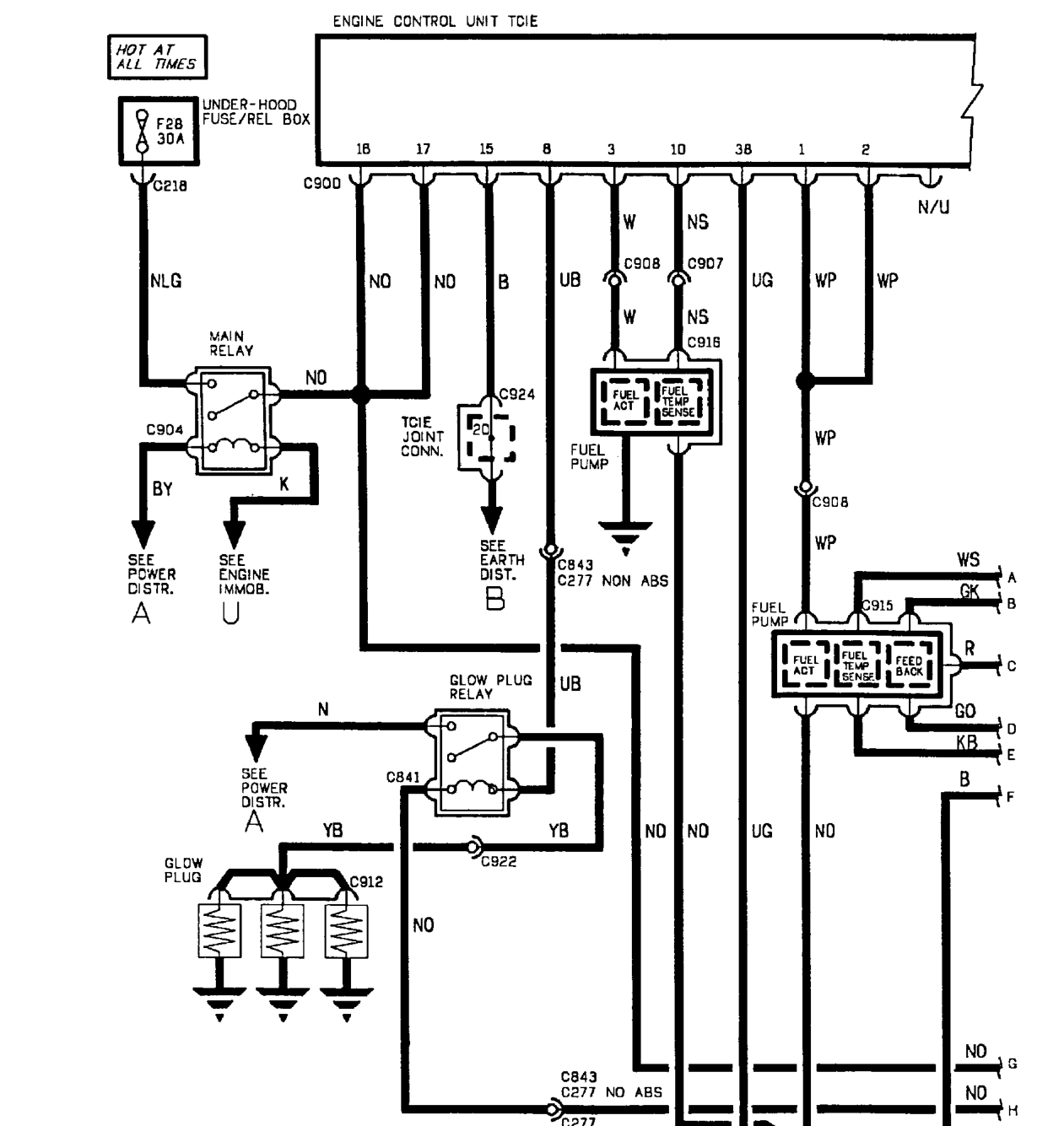

Engine management system
NOTE: For description and operation of Engine Management System, see ENGINE MANAGEMENT SYSTEM - EDC, Description and Operation.
