CAMSHAFT TIMING BELT
Service repair no - 12.65.18/01
Remove
- Remove 3 bolts and remove LH rear timing belt cover.

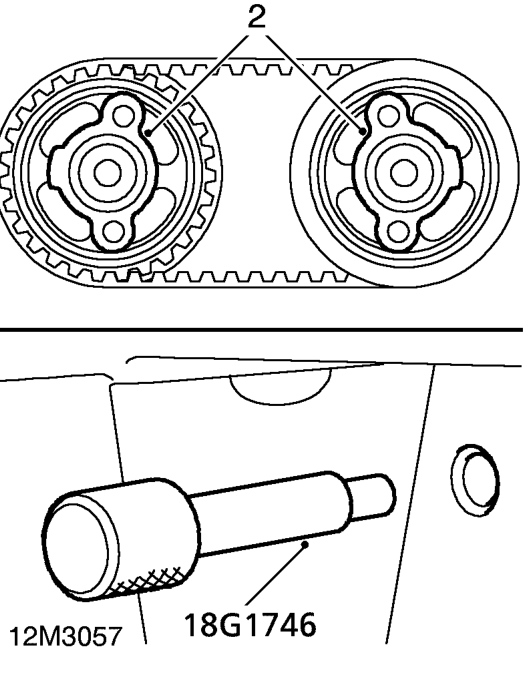

- Set engine in the ’safe’ position. To do this, turn crankshaft in a clockwise direction until rear camshaft gear hubs on LH bank are positioned as shown. Lock crankshaft by inserting tool 18G 1746 through hole in lower crankcase below LH cylinder bank.
