Rover R65 Uprated Manual Gearbox Overhaul Manual03 · Overhaul
03 · General

Gearbox dismantling (page 4 of 10)

Make
Rover
Model
Engine & gearbox overhaul R65 Uprated Manual Gearbox Overhaul Manual
Section
Overhaul
OverhaulGearbox dismantling · page 4 of 10
Diagram

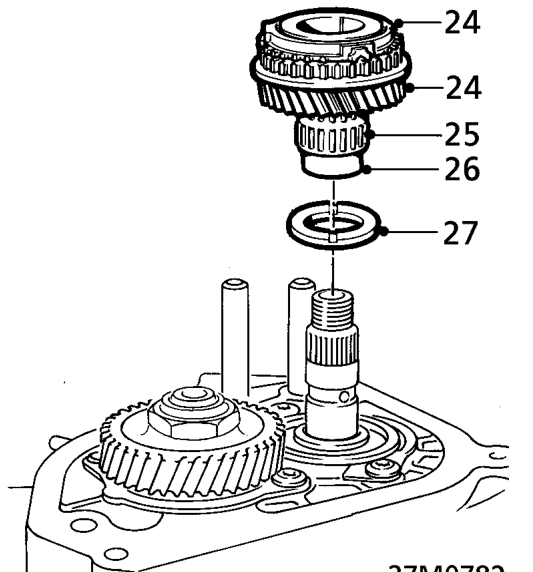

  1. Remove 5th speed gear synchro ring together with 5th speed driven gear from output shaft.
  2. Remove needle bearing.
  3. Remove bearing collar.
  4. Remove spacer washer.
Remove spacer washer.

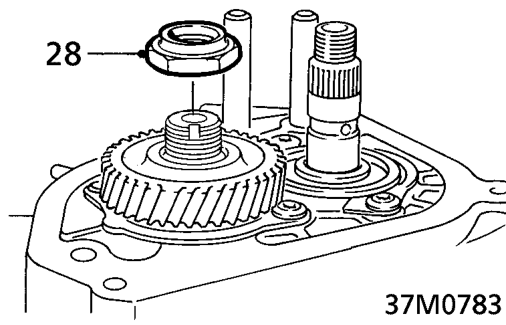

  1. Remove and discard locknut securing 5th speed gear to input shaft.
Remove and discard locknut securing 5th speed gear to input shaft.

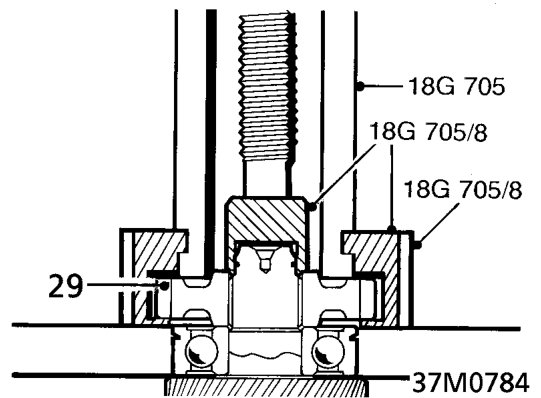

  1. Using tool 18G705 and adaptor tool 18G705-8, remove 5th speed gear from input shaft.
Using tool 18G705 and adaptor tool 18G705-8, remove 5th speed gear from input shaft.

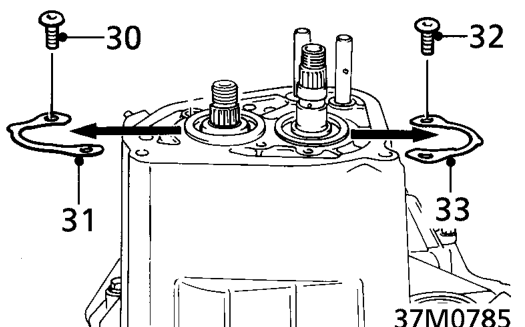

  1. Remove and discard 2 Torx screws securing input shaft bearing locking ring.
  2. Slide locking ring out of bearing recess.
  3. Remove and discard 2 Torx screws securing output shaft bearing locking ring.
  4. Slide locking ring out of bearing recess.

NOTE: This is smaller of two locking rings.
