Gearbox dismantling (page 8 of 10)

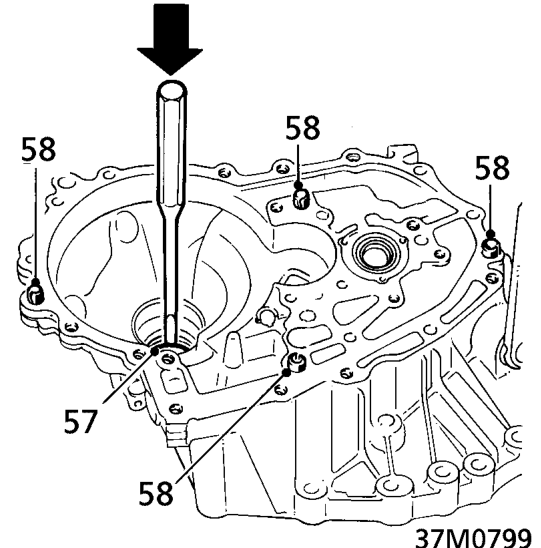

57. Using a punch, drive differential oil seal out of clutch housing; discard seal.
58. Remove 4 spring dowels from clutch housing.

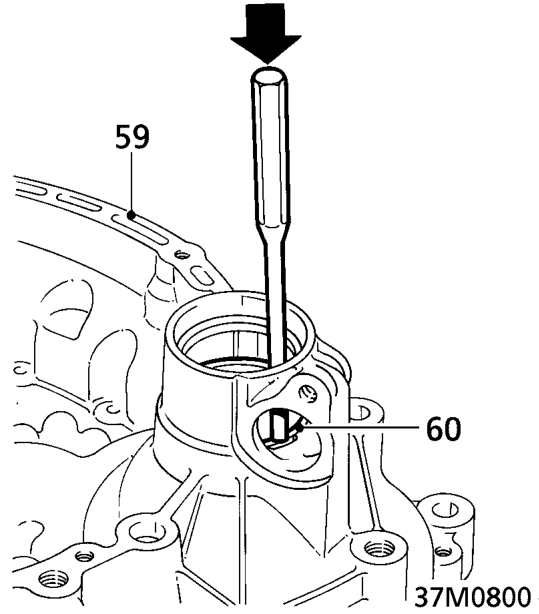

59. Invert clutch housing.
60. Using a punch inserted in slots in clutch housing, progressively drive out differential bearing outer track.

CAUTION: If differential bearings are to be re-used, do not remove bearing track.

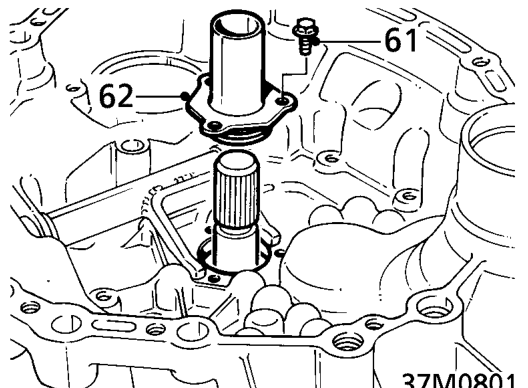

61. Remove and discard 3 bolts securing clutch release bearing guide sleeve.
62. Remove and discard release bearing guide sleeve and oil seal.

NOTE: Release bearing guide sleeve and oil seal may only be replaced as an assembly.

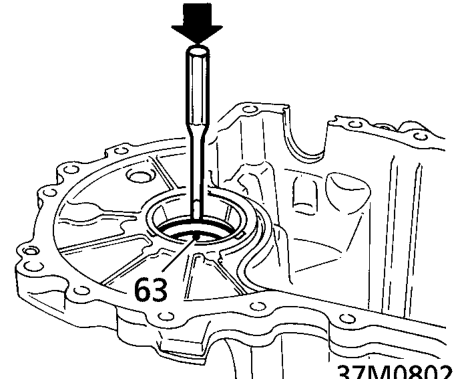

63. Using a punch, drive differential oil seal out of gearbox casing; discard oil seal.
