OverhaulGearbox case - dismantling · page 4 of 5
Diagram

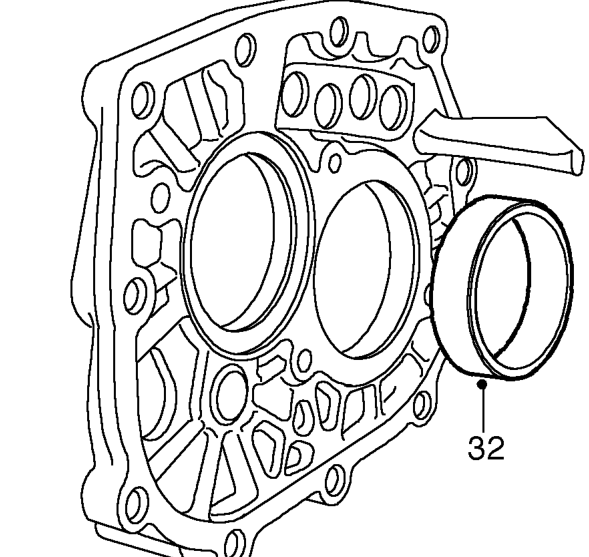

  1. Remove output shaft rear bearing cup from support plate.
Remove output shaft rear bearing cup from support plate.

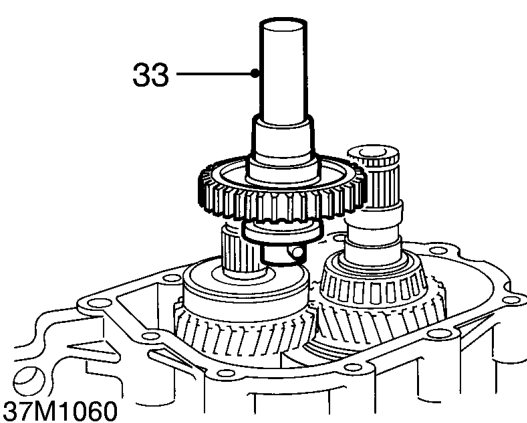

  1. Noting position of roll pin in gearcase, remove reverse idler gear and shaft assembly.
Noting position of roll pin in gearcase, remove reverse idler gear and shaft assembly.

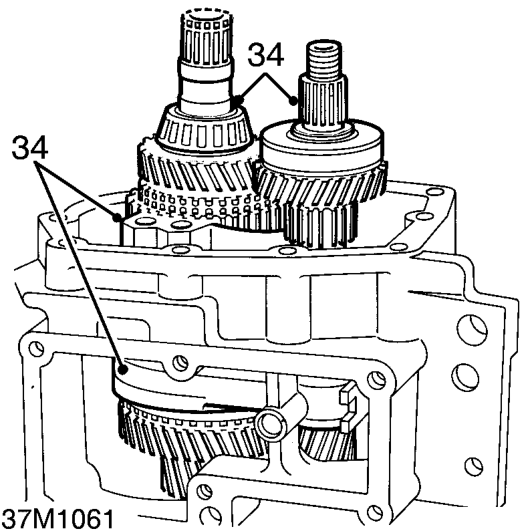

  1. Move 1st/2nd selector fork sideways and remove input and output shafts complete with selector forks.
  2. Remove 1st/2nd and 3rd/4th selector forks.
Remove 1st/2nd and 3rd/4th selector forks.

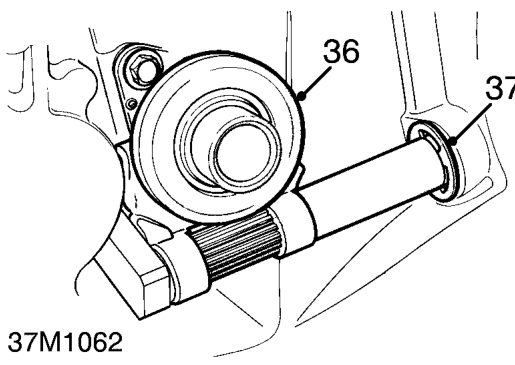

  1. Remove clutch release bearing from fork.
  2. Remove ’E’ clip retaining clutch release shaft. Discard ’E’ clip.
