Gearbox case - reassembling (page 4 of 4)

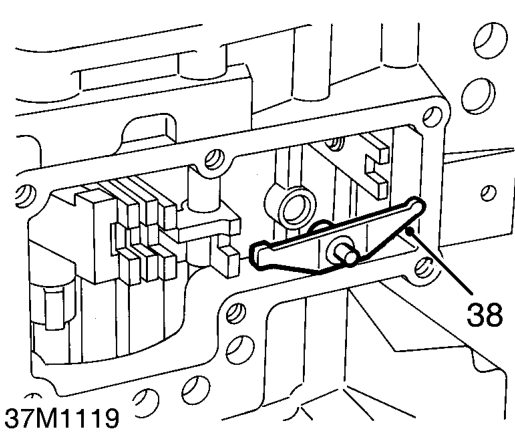

38. Fit reverse pivot arm ensuring tang on arm is located in slot in reverse lever.
39. Fit oil baffle.
40. Apply a bead of RTV sealant to selector housing.
41. Ensure lug on selector is aligned with tags on selector inhibitor.
42. Fit selector housing ensuring detent springs are correctly aligned to their locations.
43. Fit dowel and plain bolts, tighten to 30 Nm.
44. Remove all traces of RTV sealant from input shaft bearing retainer.
45. Lubricate NEW oil seal, fit oil seal to retainer using a piloted mandrel.

NOTE: Edge of seal must be flush with edge of retainer.

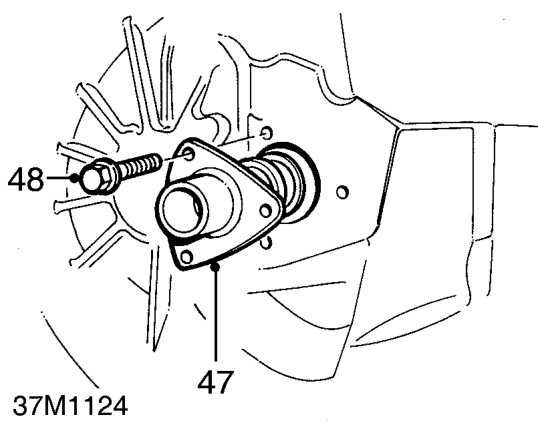

46. Apply a bead of RTV sealant to bearing retainer.

47. Fit bearing retainer ensuring oil drain hole is towards bottom of gearcase.
48. Apply RTV sealant to threads of bearing retainer bolts, fit bolts and tighten progressively to 28 Nm.

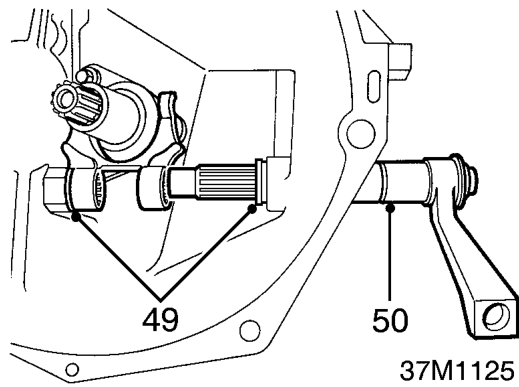

49. Fit clutch release shaft bushes.

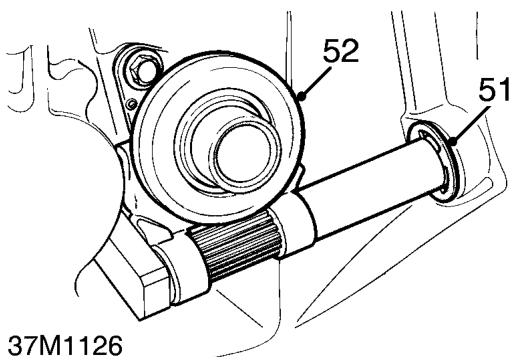

50. Fit clutch release shaft and fork ensuring master splines in shaft and fork are aligned.

51. Secure release shaft using a NEW ’E’ clip.
52. Fit release bearing.
