Astra L4-1.8L (2009)

Page 11
background image

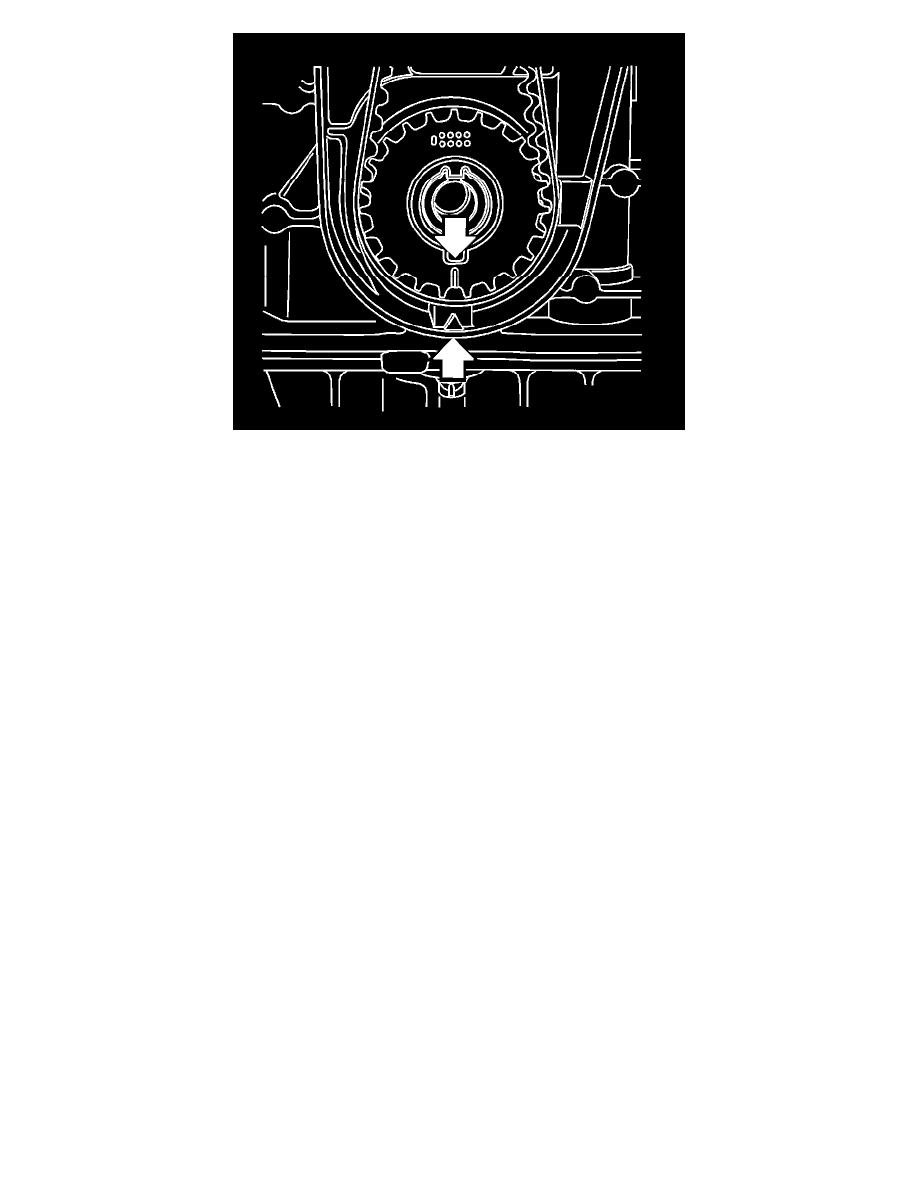

12. Position the crankshaft to cylinder number 1 ignition TDC.

Marking, toothed belt drive gear and oil pump housing adapter must align.

13. Lower the vehicle by its full height.
