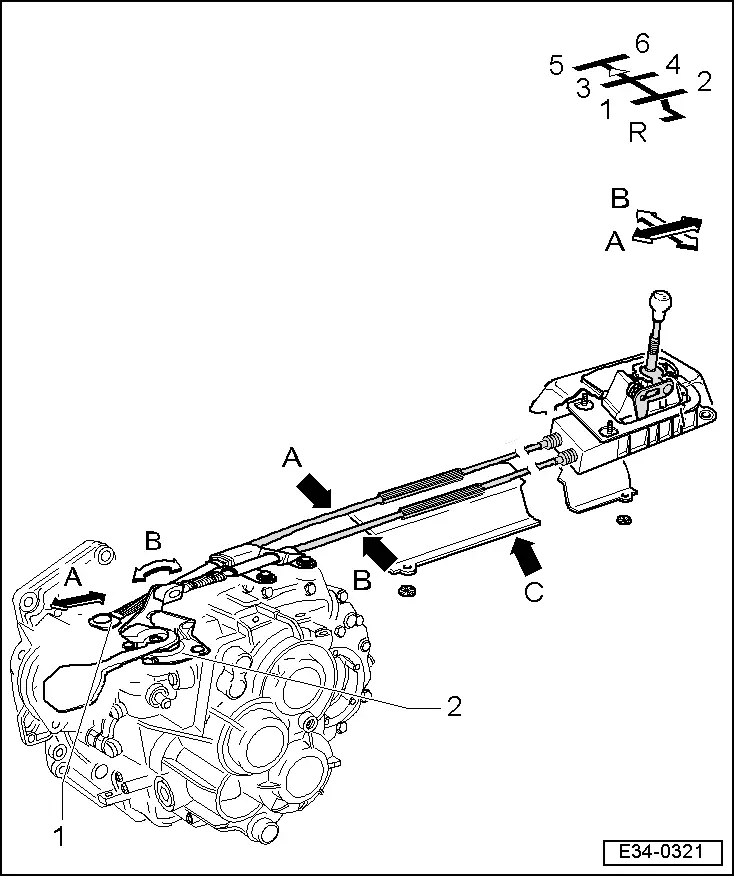

Gear selection mechanism: installation position

Gear selection mechanism: installation position
Gear movement -arrow A-
-Arrow B-: Selection movement
A - Connection cable for gear engagement
B - Selection control cable for selecting tracks
C - Heat shield
q   Detach before removing selector mechanism.
1 - Gear selection rod
2 - Return lever

  Note
t  To carry out work on the gear operation mechanism in the engine compartment, the battery earth strap must be disconnected → Electrical system; Rep. Gr.27.
t  For vehicles fitted with an anti-theft code radio, the code must be found first.

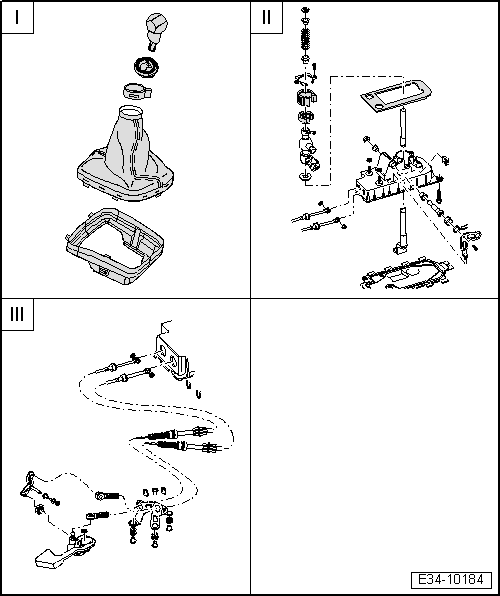

I -  → Chapter „Gear lever knob with cover: Assembly overview“.
II -  → Chapter „Gear selection mechanism:installation overview“.
III -  → Chapter „Selector lever control cable - Assembly overview“.
