Leon Mk1
6-speed manual gearbox 02N
Gearbox,mechanics,gears,shafts,internal operation
Output shaft for 5th, 6th and reverse gears
Adjusting output shaft for 5th, 6th and reverse gears
Determining thickness of shim
Determining thickness of shim
Specified bearing preload is obtained as follows:
Subtracting measured value (0.25 mm) from inserted shim (1.70 mm).
Add a constant value for preload (0.20 mm).
Example:
Installed shim
1.70 mm
- Measured value
0.25 mm
+ Preload (constant)
0.20 mm
Shim thickness
1.65 mm
–
Determine thickness of shim from table
→ Chapter
.
–
Remove gearbox housing and pull tapered roller bearing outer race from gearbox housing.
A -

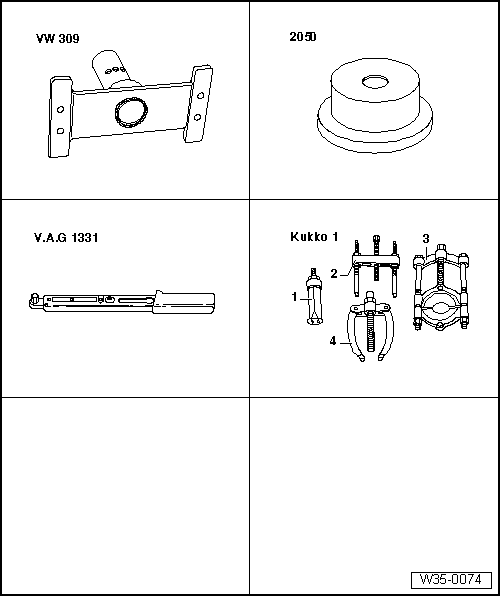

Counter support, e.g. -Kukko 22/2-
B -
Internal puller 46 … 58 mm, e.g. -Kukko 21/7-.
–
Remove inserted shim (1.70 mm thick) from gearbox housing.
