Leon Mk1
|
|
|

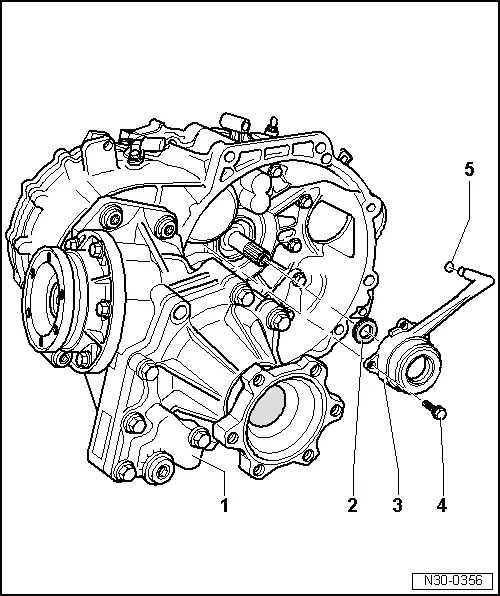

| 1 - | Gearbox |
| 2 - | Input shaft seal |
| q | Renewing for gearbox date through 12 01 3 → Chapter |
| q | Renewing for gearbox date from 13 01 3 → Chapter |
| 3 - | Slave cylinder with clutch release bearing |
| q | Are one unit and can only be renewed together |
| q | Do not wash out bearing; wipe only |
| q | Renew noisy bearings together with slave cylinder |
| 4 - | Bolt |
| q | Qty. 3 |
| q | Always renew |
| q | For metal slave cylinder housing, 12 Nm |
| q | For plastic slave cylinder housing, 15 Nm |
| q | Carefully tighten diagonally so that the bolt holes of the slave cylinder do not break off |
| 5 - | O-ring |
| q | Always renew |
| q | Pull onto line connection |
| q | Moisten with brake fluid before installing |
