Leon Mk1

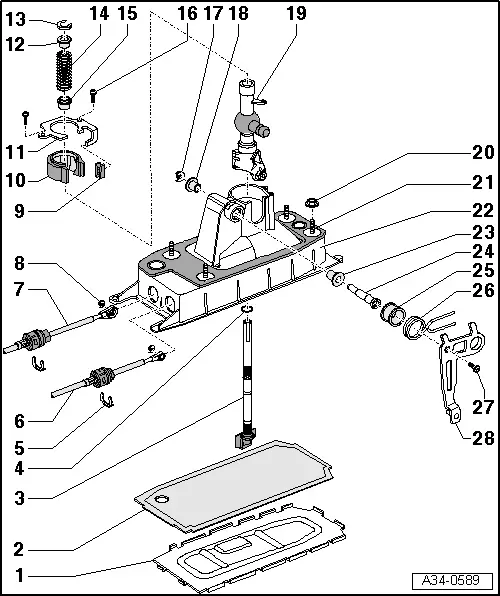

Gear selection mechanism:installation overview
Gear selection mechanism:installation overview
  Note
Lubricate the support points and contact surfaces with grease → Spare parts catalogue.

1 - Base plate
q   Straighten tabs for removal
q   replace
2 - Seal
q   Replace if worn
3 - Gear lever
4 - O ring
q   Replace if worn
5 - Securing clip
6 - Selection control cable
q   Removing and installing → Chapter
q   Adjust convergence → Chapter
7 - Gear selector cable
q   Removing and installing → Chapter
q   Adjust convergence → Chapter
8 - Securing clip
9 - Frame
q   For compression spring → Item
10 - Bearing shell with damper element
11 - Panel
12 - Thrust piece
13 - Securing clip
q   Removing and installing → Fig.
14 - Compression spring
15 - Thrust piece
16 -  6 Nm
17 - Securing clip
18 - Mounting bush
19 - Gear lever guide
20 -  10 Nm
21 - Seal
q   Between gear lever casing and vehicle underbody
q   Self-adhesive
22 - Gear lever casing
23 - Mounting bush
24 - Bearing pin
25 - Guide sleeve
q   Fit into the gear lever housing
26 - Compression spring
q   Installing → Fig.
27 -  5 Nm
28 - Selector bracket


Removing and installing securing clip
–  Secure gear lever -2-.
–  Insert the spacer sleeve -3- in the -direction of the arrow-.
–  Remove safety washer -1-.
  A34-0595
Fit the compression spring
–  From above, attach reinforcement -A- of compression spring onto guide -1-.
–  Push reinforcement -B- of the compression spring down and insert in guide -1-
  Note
For clarity, the selector bracket is shown removed.
  A34-0601
