Leon Mk1

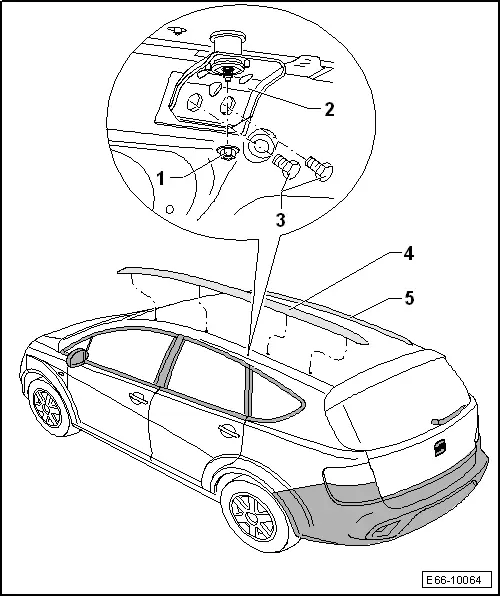

Roof rail - Assembly overview |
1 - | Hexagon nut |
q | 10 +/- 1 Nm |
q | 4 pieces |
2 - | Retainer |
q | 4 pieces |
q | Position and the respective side are marked on the inside of the mounting |
q | Holder 1 corresponds with the front section of the vehicle |
q | Tightening sequence: 2 – 3 – 4 – 1 |
3 - | Bolt |
q | 20 +/-2 Nm |
q | 8 on each side |
4 - | Left roof rail |
q | Removing and fitting → Chapter |
5 - | Right roof rail |
q | Removing and fitting → Chapter |
