Leon Mk1

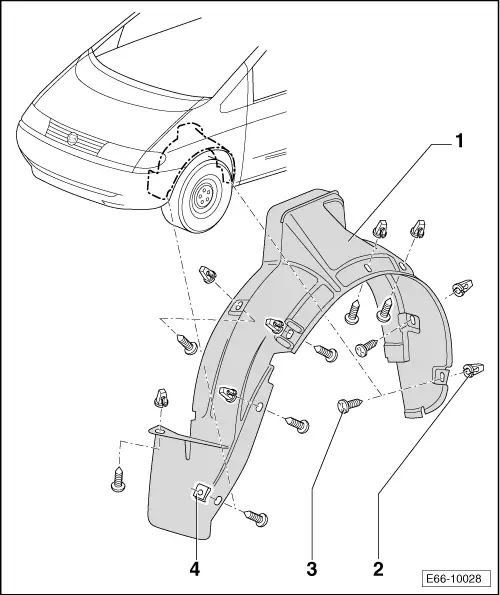

| Assembly overview - front wheel housing liner |
| 1 - | Wheel housing liner |
| q | Material: PP/EPDM. |
| q | Removal: |
| – | Remove wheel: → Running gear; Rep. gr.44. |
| – | Remove cross-head screws -3- (Qty. 9) and take off wheel housing liner. |
| 2 - | Spreader nut |
| 3 - | Cross-head screw |
| 4 - | Speed nut |
