Removing and installing left coolant pipe t  Removing → Anchor t  Installing → Anchor Consult the equivalence table for tools and equipment according to applicability among Seat / VW / Audi / Skoda → Chapter.

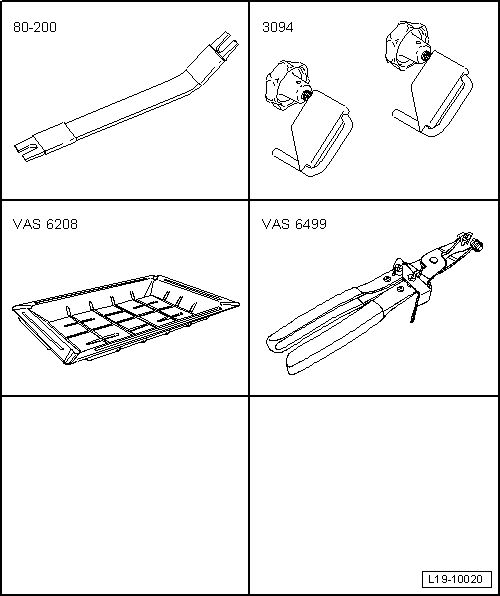

Special tools and workshop equipment required

t	Release lever -80 - 200-, see equivalent → Anchor

t	Hose clamps up to Ø 25 mm -3094-, see equivalent → Anchor

t	Collector tray for workshop crane -VAS 6208-, see equivalent → Anchor

t	Base -VAS 6499-, see equivalent → Anchor

Removing –  Remove the engine cover upwards -arrows-.

–  Fit the centre noise insulation -fasteners 1 ... 3-. –  Remove the air filter housing → Chapter.

–  Free wiring harnesses -arrows- and electrical connector -1- at bracket.

–  Release hose clips -1- and -2- and remove air intake hose.

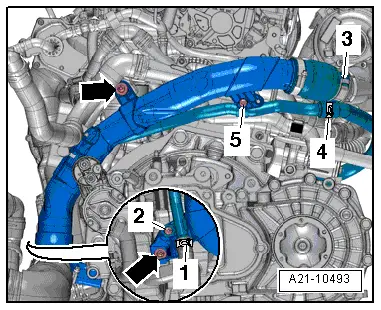

–  Unscrew bolts -2-, -5- and -arrows-. –  Free electrical lines and hoses on left air pipe using removal lever -80 - 200-. –  Release hose clip -3- and remove left air pipe. –  Place drip tray for workshop cranes -VAS 6208- beneath engine. –  Disconnect the coolant hoses using the hose clip -3094- and remove hose clips -1- and -4-.

–  Pull coolant hoses off left coolant pipe. –  Remove left coolant pipe. Installing l  Tightening torques: → Chapter Installation is carried out in reverse sequence; note the following:   Note t  Hose connections and air pipes and hoses must be free from oil and grease before fitting. t  Secure all hose connections with the correct type of hose clips (same as original equipment) → Electronic parts catalogue. –  Electrical connections and routing → Current flow diagrams, Electrical fault finding and Fitting locations. –  Fill coolant system with coolant → Chapter.
