Leon Mk1
Note
|

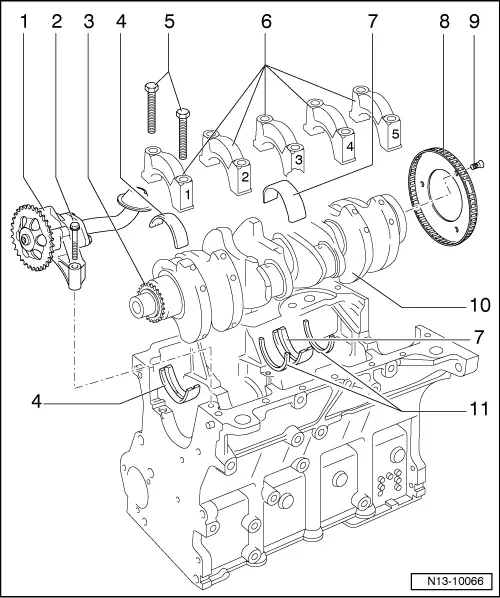

| 1 - | Oil pump: |
| 2 - | 15 Nm |
| 3 - | Pinions |
| q | For oil pump drive |
| 4 - | Semi bearings 1, 2, 3, 4 and 5 |
| q | Classification for ordering spare parts → Chapter |
| q | For bearing cap without oil groove. |
| q | For cylinder block with oil groove. |
| q | Do not interchange used bearing shells (mark) |
| 5 - | 40 Nm + 90° |
| q | Renew |
| q | Continuous screw thread |
| q | Tighten to 40 Nm in order to measure radial play of the crankshaft |
| 6 - | Bearing cap |
| q | Bearing cap 1: Pulley end. |
| q | Bearing shell retaining lugs (cylinder block/bearing cap) must be on the same side. |
| 7 - | Bearing shell 3 |
| q | Do not interchange used bearing shells (mark) |
| 8 - | Generator wheel: |
| q | For engine speed sender -G28- |
| q | Replace the sender wheel each time the bolts are loosened. |
| q | The pressure plate can only be installed in one position. Holes are off-set. |
| q | Removing and installing → Chapter |
| 9 - | 10 Nm + 90° |
| q | Renew |
| 10 - | Crankshaft |
| q | New axial play: 0.07 - 0.23 mm; Wear limit: 0.30 mm |
| q | Recheck the axial play using a Plastigage, new: 0.01 - 0.04 mm; Wear limit: 0.07 mm |
| q | Do not rotate crankshaft when checking radial clearance. |
| q | Crankshaft dimensions → Chapter |
| 11 - | Thrust washer |
| q | For cylinder block, bearing 3 |
| q | The letters point to the retaining block |
