Leon Mk1

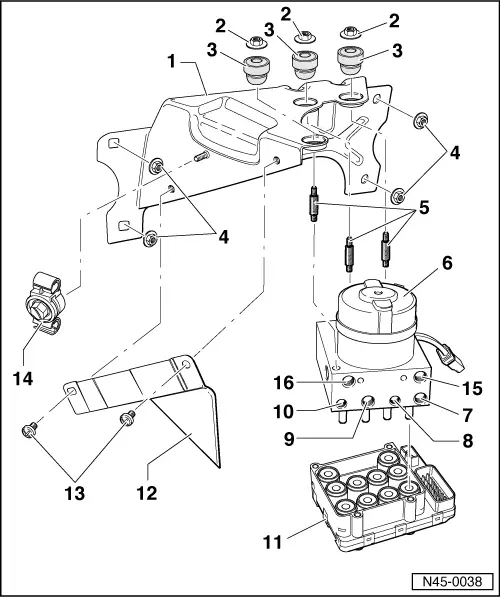

| Hydraulic unit - assembly overview, right-hand drive vehicles |
Note!| The pump and the valve block should not be separated. |
| 1 - | Support |
| q | Fitted to the mounting plate |
| 2 - | Nut, self-locking |
| q | 10 Nm |
| q | Always replace |
| 3 - | Rubber damper |
| 4 - | Nut, self-locking |
| q | 25 Nm |
| q | Always replace |
| 5 - | Bolt |
| q | 8 Nm |
| 6 - | ABS hydraulic unit |
| 7 - | Brake pipe connection |
| q | Hydraulic unit to front left brake clip |
| 8 - | Brake pipe connection |
| q | Hydraulic unit to rear left brake drum |
| 9 - | Brake pipe connection |
| q | Hydraulic unit for rear left brake drum |
| 10 - | Brake pipe connection |
| q | Hydraulic unit for front right brake clip |
| 11 - | Control unit |
| 12 - | Heat shield |
| 13 - | Screw |
| q | 8 Nm |
| 14 - | Clip |
| 15 - | Brake pipe connection |
| q | Master brake cylinder/floating piston circuit to hydraulic unit |
| 16 - | Brake pipe connection |
| q | Master brake cylinder/pressure-bar piston circuit to hydraulic unit |
