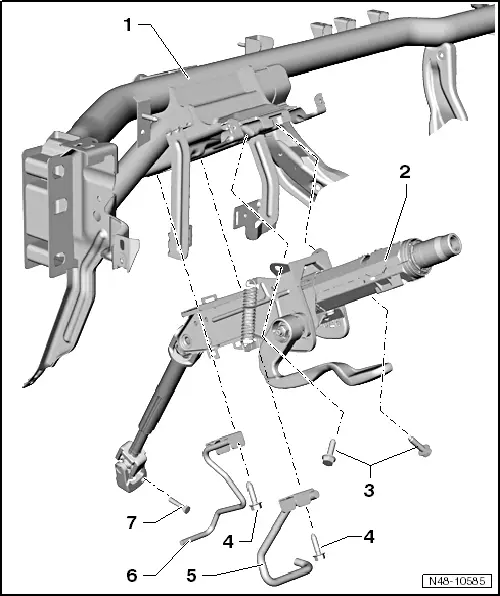

Assembly overview: Steering column, left-hand drive
Handling and transporting steering column
Handling and transporting steering column
Handling and transporting steering column
WARNING
t
These instructions for handling the steering column MUST be observed at all times.
t
Incorrect handling can damage the steering column and thus cause a safety risk.
Correct handling and transportation of steering column
t
Use both hands to transport steering column.
t
Hold steering column upper jacket tube and in area of upper universal joint.
Improper handling of steering column
Transportation using the clamping lever leads to primary steering column damage.
Improper handling of steering column with safety risks
Following methods of handling will damage universal joint bushes and lower steering column bearing:
t
Transporting steering column with one hand on jointed shaft.
t
Bending joints more than 90°.
