FS-III brake disc: Removing and installing. > < Removal:

Leon Mk2

Installation
Installation
l  Piston is pressed back.
–  Fit the brake pads and the piston into the brake calliper housing.

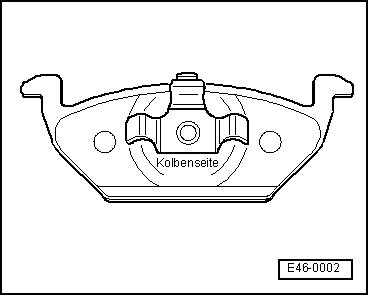

–  Fit the brake pad with the inscription "Kolbenseite" on the rear section, on the brake piston.
–  Brake pad with the three-tabbed black clip to the outside of the brake calliper.
  E46-0002

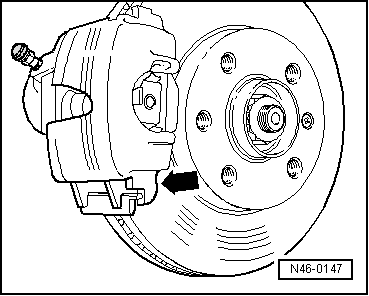

–  First support the lower part of the calliper -arrow-.
–  Fit the brake calliper with the brake pads into the wheel bearing casing.
l  The brake calliper pivot should be behind the brake back plate guide!
–  Screw the brake calliper casing to the brake back plate with the two guide pins → Item.
–  Fit the two protective covers.
–  Remove the block for the brake pedal -VAG 1869/2-.
–  Screw in the brake hose → Item.
–  Bleed brake system → Chapter.
–  Fit wheel.
Tightening torque for wheel bolts → Rep. gr.44
  Note
t  Firmly depress the brake pedal several times with the vehicle stationary, so that the brake pads are properly seated in their normal operating position.
t  Check the brake fluid level.
  N46-0147
