Leon Mk2

Multiple cog adaptor for the steering column: disassembly and assembly

Multiple cog adaptor for the steering column: disassembly and assembly

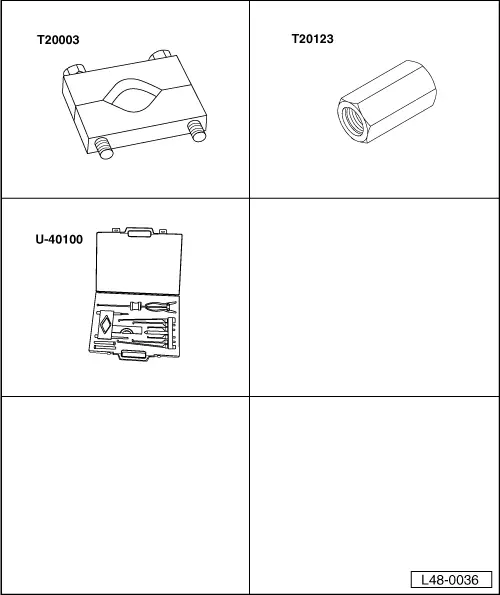

Special tools and workshop equipment required
t  Base -T20003-
t  Clamping tool -T20123-
t  Set -U-40100-

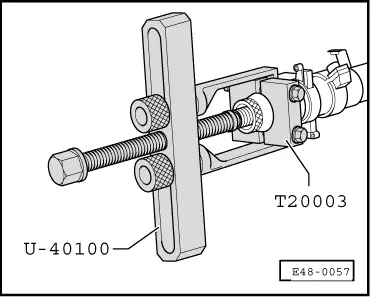

–  Extract the adapter socket from the multiple cog adapter using the KIT -U-40100- and the base -T20003-.
  E48-0057

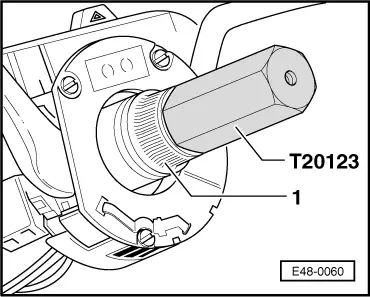

–  Insert the multiple cog adaptor socket -1- into the steering column and tighten using the pressure plate extractor -T20123- .
  E48-0060
