Removing and installing the lock cylinder housing
Removing and installing the lock cylinder housing
Removing

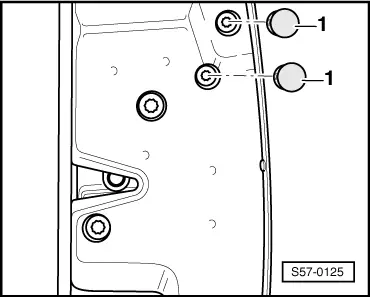

–  Release caps -1-.
  S57-0125
–  Pull and hold door handle -1-. Loosen screw -3- by about 3 turns. The lock cylinder housing is detached.
  Note
If the screw is unscrewed too far the catch may separate from the bracket and fall inside the door.
For vehicles 09.00 ?
–  Release securing screw → Chapter, Pos. 11.
Continued for all vehicles
–  Pull out the lock cylinder housing with cap -2- from the clamp of the door handle at a right angle to the door.
Install
Installation is carried out in the reverse order.
  Note
The new key has to be adapted after installing the new spare part → Electrical System; Rep. Gr.96 and → Chapter.
  S57-0097
