Waiting time > < Prepare body flange for fitting

Fabia Mk1

Glueing
Glueing

–  After completing the preparations cut the nozzle for applying the glue into shape as shown in the figure.
–  Dimension -a- = 12 mm
–  Bead width 8 mm.
–  Application direction -arrow-.
  Note
t  The bead section is dependent on the section of the nozzle and the application speed.
t  When using a 1 window pane component glue -DH 009 100- or -DH 009 100 03-, preheat the glue cartridges for 20 minutes in the warming box e.g. -V.A.G 1939A-.
t  Use disposable gloves when working with glues and adhesive materials.
  WARNING
Comply with the manufacturer's handling instructions.
Windscreen
  S64-0022
–  Apply the glue sealing compound next to the distance profile -1- and all around it with adhesive gun tilted to the centre of the window.
–  The adhesive bead -3- must be positioned obliquely to the inside, so that the adhesive does not extend beyond the edge of the window when pressing on the window -2-.
  Note
t  Apply adhesive cement at a temperature of 10 to 30°C.
t  Open all vehicle windows before fitting the window in the frame.
–  Insert window pane into the frame with the aid of two suction cup tools (e.g. -V.A.G 1344 -), centre and press onto the spacer catches.
  WARNING
Fit the window pane immediately as otherwise the adhesive properties of the adhesive cement decrease considerably.
–  Set window in the frame with eccentric.
–  Fix the window during hardening process with adhesive tape.
Rear and side window

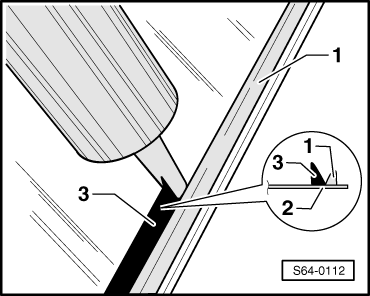

  S64-0112
–  Apply the adhesive cement to the sealing section -1- perpendicularly to the window surface and all around it.
  Note
t  Apply adhesive cement at a temperature of 10 to 30°C.
t  Open all vehicle windows before fitting the window in the frame.
–  Insert window pane into the frame with the aid of two suction cup tools (e.g. -V.A.G 1344 -), centre and press onto the spacer catches.
  WARNING
Fit the window pane immediately as otherwise the adhesive properties of the adhesive cement decrease considerably.
–  Fix the window during hardening process with adhesive tape.
–  Any adhesive cement which was applied too thickly and is pressed out up to the heating filaments of the rear window heating must be removed.

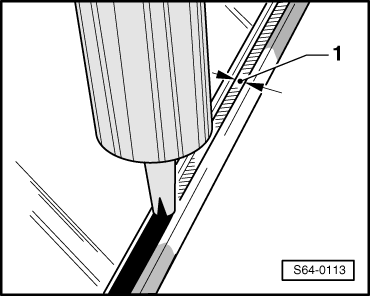

  S64-0113

Waiting time > < Prepare body flange for fitting
