Replacing Valve Stem Seal for Fabia Mk1 10/37; 14/44; 14/50 kW MPI Engine

Replacing valve stem seal
Replacing valve stem seal
Special tools and workshop equipment required
t  Valve stem seal insertion tool -MP1-212-
t  Valve supporting plate -MP1-113 -

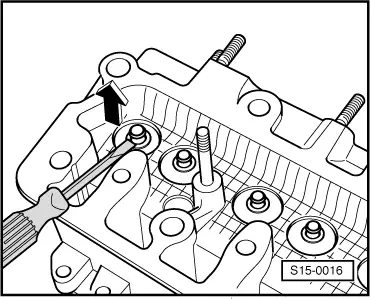

–  Carefully lever off valve stem seal -arrow-.
–  Insert valve into the guide.
  S15-0016

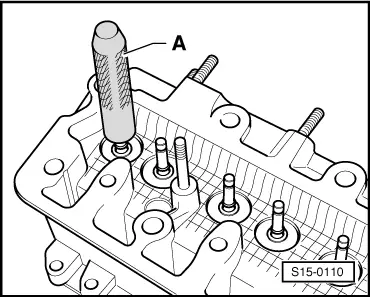

–  Oil valve stem seal, place into insertion tool -A- with the coil spring first, then carefully fit onto the valve stem and press onto the valve guide.
  S15-0110
