Testing Engine speed sender -G28-
The Engine speed sender -G28- is a speed and reference marking sender. If it fails the engine stops.
Special tools and workshop equipment required
t
Hand multimeter (e.g. -V.A.G 1526 A-)
t
Adapter cable set (e.g. -V.A.G 1594 A-)
t
Test box -V.A.G 1598/31-
Test sequence
–
Switch off the ignition.
–
Remove engine cover.
To do so pull the front and rear engine cover upwards with a sudden motion.
–

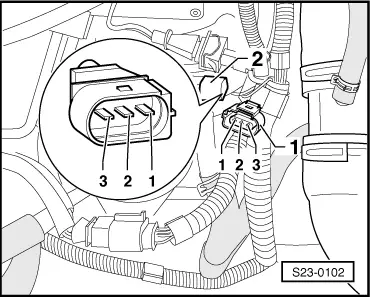

Disconnect the plug connection of the Engine speed sender -G28-.
–
Connect the handheld multimeter to measure the resistance on contacts 1+2 of plug
-2-
.
Specified value: 1.1…1.6 kΩ
If the specified value is not reached:
–
Replace the Engine speed sender -G28-
→ 1.9/47 SDI Engine, Mechanics; Rep. Gr. 13
.
If the specified value is reached:
–
Connect the test box -V.A.G 1598/31 - to the wiring loom on the engine control unit
→ Chapter
.
–
Check the following wires for interruption or short-circuit to earth or positive:
Connector
-1-
, contact
Test box -V.A.G 1598/31-, bush
1
102
2
110
3
86
–
Also test the wires for short-circuits.
If the lines are not found to be faulty:
–
Replace the Diesel direct injection system control unit -J248-
→ Chapter
.
