Repairing the clutch control
Repairing the clutch control
Special tools and workshop equipment required
t  Grease for plug serration of clutch disc -G 000 100-

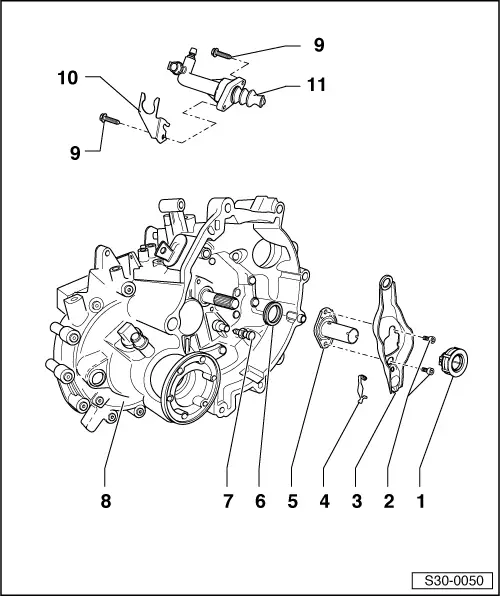

1 - Release bearing
q   Do not wash the bearing, just wipe clean
q   replace noisy bearings
q   removing and installing → Fig.
q   remove and install together with the clutch release lever Pos. 3 and guide bushing Pos. 5 → Fig.
2 - turn 5 Nm and 90°
q   always replace → Electronic Catalogue of Original Parts
3 - Clutch release lever
q   remove and install together with the release bearing Pos. 1 and guide bushing Pos. 5 → Fig.
4 - Retaining spring
q   attach to clutch release lever
5 - Guide bushing for clutch release bearing
q   removing and installing → Fig.
q   remove and install together with the clutch release lever Pos.3 and release bearing Pos. 1 → Fig.
6 - Gasket ring for drive shaft
q   replace → Chapter
7 - Ball stud, 20 Nm
q   grease with grease for plug serration of clutch disc -G 000 100-
8 - Gearbox
9 - 20 Nm
10 - Support
11 - Slave cylinder
q   removing and installing → Chapter
q   Grease tappet end with grease for plug serration of clutch disc -G 000 100-


Remove and install the clutch release lever together with the release bearing and guide bushing

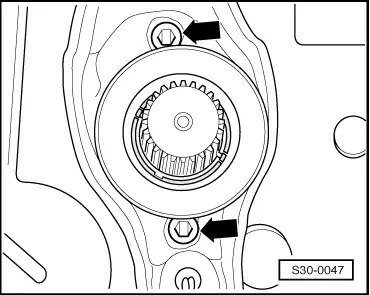

–  Release screws -arrows-.
–  Separate the clutch release lever together with the release bearing and guide bushing from the drive shaft and ball stud.
Installation is carried out in the reverse order.
  S30-0047
Removing and installing the guide bushing
–  Rotate the guide bushing -3- opposite the release bearing -2- 90° in the direction of the arrow until the catch pegs of the guide bushing fit into the slots -4- of the clutch release bearing.
–  In this position remove the guide bushing from the release bearing.
Installation is carried out in the reverse order.
  S30-0044
Removing and installing the release bearing
–  Press the catch pegs -arrows- together and remove the release bearing -A- from the clutch release lever.
–  To install press the clutch release lever into the clutch release bearing -A- until the catch pegs -arrows- lock into position.
  S30-0056
