Fabia Mk2

Front wing strip
Front wing strip
  Note
t  The ambient temperature as well as the temperature of the parts must be at least 18°C, maximum 30°C.
t  After glueing the tuning parts, the vehicle must remain in a warm room for at least 3 hours.
t  Before glueing, all of the adhesive surfaces must be degreased with good quality - the quality of the glued joint depends upon this!
t  Bead width 8±1 mm, bead height 14±2 mm.

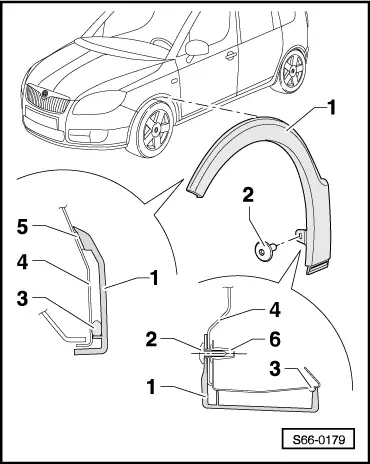

Install front wing strip:

–  Thoroughly clean all the adhesive surfaces and degrease with cleaning solution - D 195 850 A1 -.
–  Apply primer - D 822 150 A1 - in adhesive area on plastic part.
–  After drying, apply primer - D 009 200 02 - in adhesive area on plastic part.
–  Apply adhesive cement (Pos. 3) - D 172 090 A2 -.
–  Press the wing strip on a specified point.
–  Before pressing on the strip, remove the protective foil from the adhesive tape (Pos. 5).
–  Correctly press the wing strip in the area of the adhesive surfaces e.g. with pinch roller -3356-.
–  Screw the screw - Pos. 2 (2.5 Nm) into the nut - Pos. 6 -.
–  Secure wing strip against moving and unglueing e.g with adhesive tape.
  S66-0179
