Fabia Mk2

Entrance plate
Entrance plate
  Note
t  The ambient temperature as well as the temperature of the parts must be at least 18°C, maximum 30°C.
t  After glueing the tuning parts, the vehicle must remain in a warm room for at least 3 hours.
t  Before glueing, all of the adhesive surfaces must be degreased with good quality - the quality of the glued joint depends upon this!

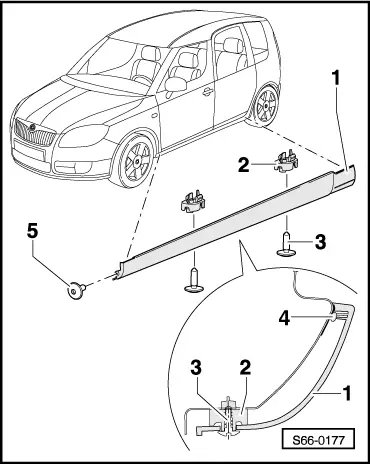

Install entrance plate:
–  Clip the adapter into the sill (Pos. 2).

–  Thoroughly clean all the adhesive surfaces and degrease with cleaning solution - D 198 850 A1 -.
–  Apply primer - D 822 150 A1 - in adhesive area on plastic part.
–  After drying, apply primer - D 009 200 02 - in the adhesive area on the entrance plate (Pos. 1).
–  Apply adhesive cement (Pos. 4) - D 172 090 A2 -.
–  Remove the protective foil from the adhesive tape.
–  Press the entrance plate on a specified point.
–  Correctly press in the area of the adhesive surfaces e.g. with pinch roller -3356-.
–  Install screw - Pos. 5 (2.5 Nm) -.
–  Install screws - Pos. 3 (2.5 Nm) - in the adapter.
–  Secure entrance plate against moving and unglueing e.g with adhesive tape.
  S66-0177
