Fabia Mk2

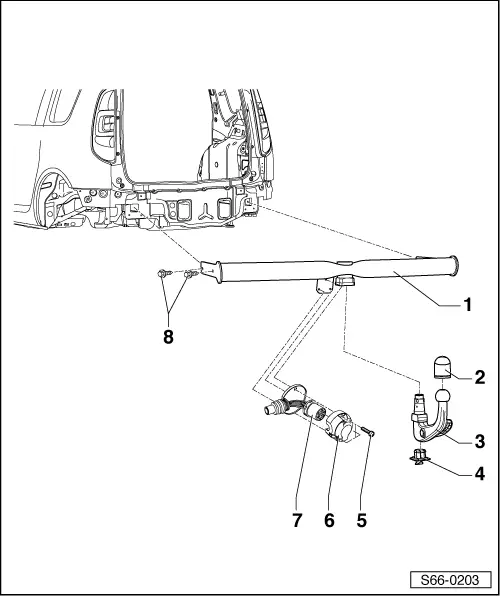

Trailer coupling |
1 - | Trailer coupling frame |
Removing: |
– | Remove the rear bumper → Chapter. |
– | Remove power socket. |
– | Remove screws (Pos. 8). |
– | Pull out trailer coupling towards the rear. |
Installing: |
– | Installation is carried out in the reverse order. |
2 - | Cap |
3 - | Trailer arm |
Removing and installing: |
– | Carry out the removal and installation according to the instructions of the manufacturer of the trailer coupling. |
4 - | Blind plug |
t | Insert into the hole after removing the trailer arms. |
5 - | 2.5 Nm |
6 - | Power socket |
Removing: |
– | Remove screws (Pos. 5). |
7 - | Wiring loom |
8 - | 70 Nm |
