Fabia Mk2

Removing and installing door window
Removing and installing door window
  WARNING
After replacing the vehicle windows, they must be provided with the vehicle identification number → Chapter.
Removing:
–  Removing door trim panel → Chapter.
–  Release inside window weatherseal from the flange.

–  Take out the caps -2-.
–  Release the screws of clamping joint (10 Nm) -1-.
–  Remove window pane from the door.
Installing:
–  Installation is carried out in the reverse order.

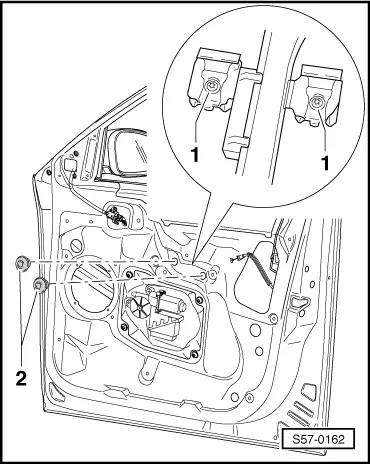

  S57-0162
