Fabia Mk2

Removing and installing the lock cylinder housing
Removing and installing the lock cylinder housing
Removing:

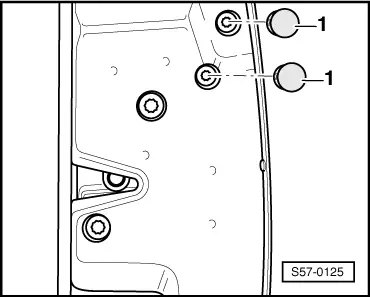

–  Lever off caps -1- with e.g. disassembly wedge -3409-.
  S57-0125
–  Pull and hold door handle -1-. Loosen screw (3 Nm) -3- by about 3 turns.
  Note
If the screw is unscrewed too far the catch may separate from the bracket and fall inside the door.
–  Release locking screw (Pos. 9). The lock cylinder housing is detached.
–  Pull out lock cylinder housing with cap -2- from bracket at right angles to the door.
Installing:
–  Installation is carried out in the reverse order.
  S57-0097
