Fabia Mk2
|
Note| t | After replacing the brake pads, depress brake pedal firmly several times when the vehicle is stationary to ensure the brake pads are properly seated in their normal operating position. |
| t | Use the brake filling and bleeding device e. g. -VAS 5234- to drain the brake fluid from the brake fluid reservoir. |
| t | Use brake pedal loader, e.g. -V.A.G 1869/2- before removing a brake caliper or separating a brake hose from the brake caliper |

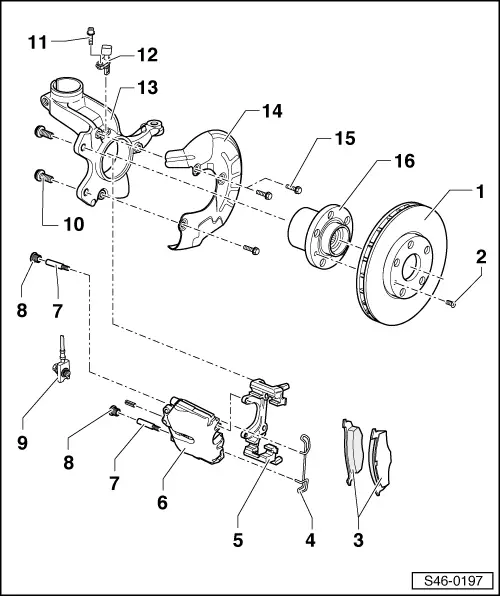

| 1 - | Brake disc |
| q | Assignment, dimensions and wear limit → Chapter |
| q | always replace axle-wise |
| q | unscrew the brake caliper before removing |
| 2 - | Screw, 4 Nm |
| 3 - | Brake pads |
| q | Thickness, wear limit → Chapter |
| q | Inspect thickness → BookletRoomster |
| q | always replace axle-wise |
| q | removing and installing → Chapter |
| q | Observe the instructions for changing the pad → Chapter |
| 4 - | Retaining spring |
| q | inserted into both bore holes of the brake caliper |
| 5 - | Brake carrier |
| q | screwed onto the wheel-bearing housing |
| 6 - | Brake caliper |
| q | do not unscrew the brake line when replacing the brake pad |
| q | removing and installing → Chapter |
| q | repairing → Chapter |
| q | Observe the instructions for changing the pad → Chapter |
| 7 - | Guide bolt, 30 Nm |
| 8 - | Cap |
| q | remove |
| 9 - | Brake hose with banjo union and hollow screw, 35 Nm |
| 10 - | Screw, 190 Nm |
| q | clean when using again |
| 11 - | Screw, 8 Nm |
| q | for speed sensor ABS |
| 12 - | ABS wheel speed sensor |
| q | clean the inner surface of the hole before inserting the sensor and brush over with a hot bolt paste -G 052 112 A3-. |
| 13 - | Wheel-bearing housing |
| q | with bolted brake carrier |
| 14 - | Cover plate |
| 15 - | Screw, 10 Nm |
| 16 - | Wheel hub with wheel bearing |
| q | Sensor ring for ABS is built into the wheel hub |
