Checking the camber on the rear axle > < Checking the transversal inclination of the vehicle

Fabia Mk2

Checking the camber on the front axle, if necessary take the mean
Checking the camber on the front axle, if necessary take the mean
The camber cannot be adjusted, it can only be centered.
If the values lie outside the tolerance the transversal inclination must be checked and if necessary adjusted → Chapter
It is possible to evenly center the camber within the tolerance range by shifting the complete engine-gearbox assembly carrier.
  Note
Assembly carrier should only be moved to the left or right, on no account in the direction of travel or opposite the direction of travel.

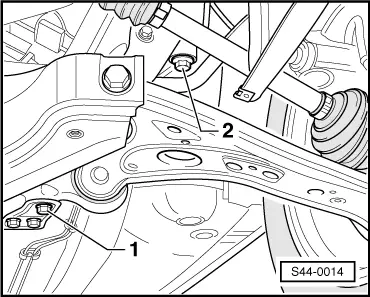

–  Release screws for consoles -1- and -2- on both sides of the assembly carrier.
–  Move the assembly carrier with consoles until the camber is equal on both sides.
–  Subsequently check the castor.
When moving the engine-gearbox assembly carrier with console the castor may change.
–  Tighten the console with the assembly carrier with new screws.
  S44-0014
Tightening torque:
Console for assembly carrier on body.
t  Use new screws!
70 Nm + 90°
