Fabia Mk2

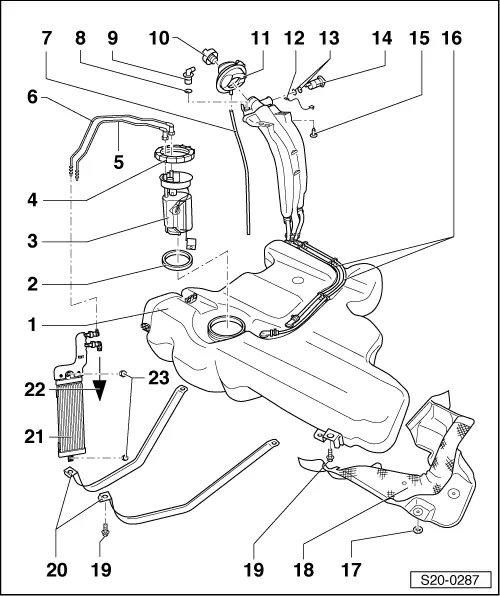

| Fuel tank with component parts (Roomster) |
| 1 - | Fuel tank |
| q | when removing support, for example with the engine/gearbox jack -V.A.G 1383 A- |
| q | removing and installing → Chapter |
| 2 - | Sealing ring |
| q | replace |
| q | only moisten from the inside the flange of the fuel delivery unit with fuel for installation purposes |
| 3 - | Fuel delivery unit |
| q | removing and installing → Chapter |
| q | with sender for fuel gauge display -G- |
| q | removing and installing the sender for fuel gauge → Chapter |
| q | inspecting fuel pump → Chapter |
| q | note the installed position of the fuel tank → Fig. |
| q | Clean strainer if dirty |
| 4 - | Union nut |
| q | use wrench -MP1-227 (3217)- for removing and installing |
| 5 - | Feed line |
| q | to fuel filter |
| q | check for firm seating |

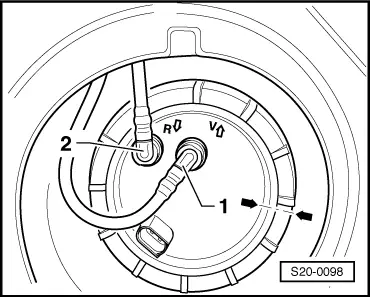

| q | Connection to the delivery unit → Fig. |
| 6 - | Return-flow line |
| q | from fuel cooler |
| q | check for firm seating |
| q | Connection to the delivery unit → Fig. |
| 7 - | Overflow hose |
| 8 - | O-ring |
| q | replace |
| 9 - | Gravity valve |
| q | to remove, unclip valve at top and lift out of filler neck. |
| q | inspect valve for blockage: |
| t | Valve in a vertical position: valve open |
| t | Valve tilted 45°: valve closed |
| 10 - | Screw cap |
| q | The gasket can be replaced separately if damaged |
| 11 - | Fuel tank lid unit |
| q | with rubber bowl |
| 12 - | Earth connection |
| 13 - | O-ring |
| q | replace |

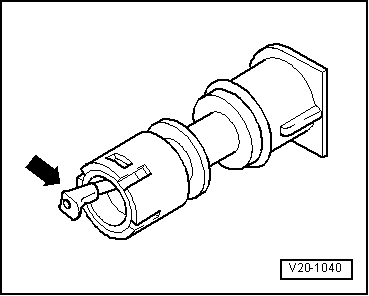

| 14 - | Vent valve |
| q | to remove, unclip valve at side and take out of filler neck. |
| q | before installing, unscrew cap → Item |
| q | check → Fig. |
| 15 - | 11 Nm |
| 16 - | Vent lines |
| q | clipped in place on fuel tank |
| 17 - | Circlip |
| 18 - | Heat shield |
| 19 - | 25 Nm |
| 20 - | Tensioning strap |
| q | pay attention to different lengths |
| 21 - | Fuel cooler |
| q | removing and installing → Chapter |
| 22 - | to fuel filter |
| 23 - | 20 Nm |
Note
|
|
