Summary of components of fuel filter (Fabia II, Roomster)

Summary of components of fuel filter (Fabia II, Roomster)
The fuel flow direction is indicated with arrows on the hoses and on the fuel filter.
1 - Return-flow hose
q   to fuel cooler
q   blue marking
2 - Intake hose
q   to fuel delivery unit:
q   white marking
3 - Retaining clip
q   replace if damaged
4 - Preheating valve
q   Fitting position: Arrow points to fuel tank
q   if the filter is replaced remove retaining clip and preheating valve with the fuel lines connected
q   Temperature below +15 °C: access to filter open
q   Temperature above +31 °C: access to filter closed
5 - Return-flow hose
q   to fuel cooler
q   blue marking
6 - Fuel hose
7 - Fuel temperature sender -G81-
8 - Intake hose
q   from fuel tank
q   white marking
9 - Fuel filter
q   fill with diesel fuel before fitting
q   do not interchange connections
q   replace if damaged
q   removing and installing → Fig.
10 - 25 Nm
11 - Support
12 - Plastic insert
q   with holder → Item a spare part


Removing and installing fuel filter
–  Remove the preheating valve with the fuel hoses fitted (pull out retaining clip).
–  Remove fuel feed line.

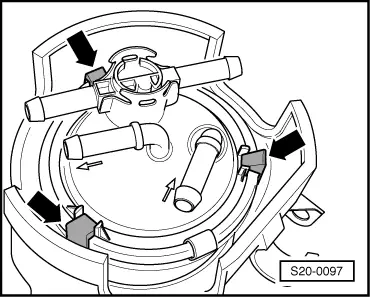

–  Push the retaining lugs -arrows- of the plastic insert outwards.
–  Remove fuel filter from the top.
  Note
The fuel filter can only be removed in one position.
  S20-0097
