Removing and installing fuel tank (Roomster)
Removing and installing fuel tank (Roomster)
Special tools and workshop equipment required
t  Engine/gearbox jack, e.g. -V.A.G 1383 A-
Conditions
l  Ignition is switched off and ignition key is withdrawn.
l  The fuel tank must be empty for weight reasons when removing it, if necessary suction the fuel out of the fuel tank → Chapter.
Removing
  Note
t  Observe the safety instructions before starting fitting work → Chapter.
t  Observe rules for cleanliness → Chapter.
–  Remove screw cap → Item from fuel filler neck.
–  Fold back right rear seat vertically → Body Work; Rep. Gr.72.
–  Remove the cover of the fuel delivery unit under the mat.
–  Unplug the 4-pin plug from the fuel delivery unit.
–  Removing rear axle → Chassis; Rep. Gr.42.
–  Remove the rear right wheelhouse liner → Body Work; Rep. Gr.66.

–  Unscrew bolts on filler neck -arrows-.

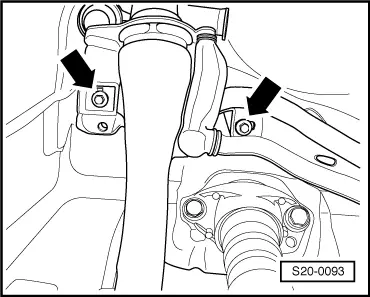

  S20-0093
–  Disconnect feed line (black) -1- and return-flow line (blue) -2- from the fuel tank (press release buttons).
–  Remove tensioning strap over the heat protection plate
–  Remove heat shield.
–  Push the suspension of rear muffler out of the retaining strap.
–  Support fuel tank using the engine/gearbox jack -V.A.G 1383 A-.

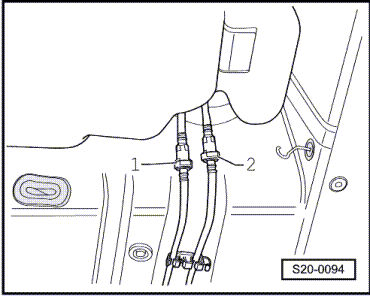

  S20-0094
–  Unscrew tensioning strap and fixing screw -arrows-.
–  Draw the filler neck from the rubber bowl and swivel the fuel tank downwards.
Install
Installation is carried out in the reverse order. Pay attention to the following:

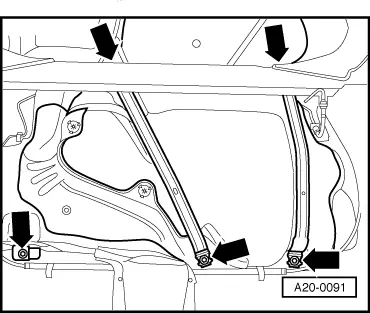

  A20-0091
–  Connect the fuel lines to the flange of the fuel delivery unit:
t  (Black) feed line -2- to connection marked -V-.
t  (Blue) return-flow line -1- to connection marked -R-.
t  Make sure the fuel line connections fit tightly.
t  Check feed line, return-flow line and ventilation line at fuel tank for firm seating.
t  Check earth connection of fuel tank/body at filler neck.

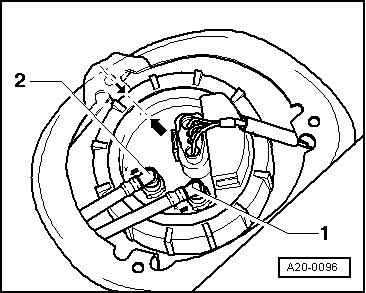

  A20-0096
