Summary of components of fuel tank with component parts and fuel filter for engine with identification characters CFNA |
1 - | Fuel tank |
q | support with engine/gearbox jack -V.A.G 1383 A- when removing |
q | removing and installing → Chapter |
2 - | Sealing ring |
q | replace if damaged |
3 - | Fuel delivery unit |

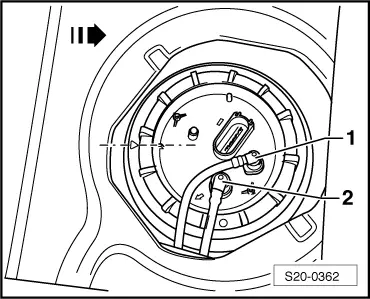

q | Fitting position of flange of fuel delivery unit → Fig. |
q | removing and installing → Chapter |
q | inspecting fuel pump → Chapter |
q | Clean strainer if dirty |
4 - | Union nut |
q | slacken and tighten with wrench for union nut -MP1-227 (3217)- |
5 - | Return-flow line |
q | from the fuel delivery unit to the fuel filter |
q | blue |
6 - | Feed line |
q | from fuel filter to fuel delivery unit |
q | black |
7 - | Overflow hose |
8 - | Screw cap |
9 - | Fuel tank lid unit |
q | with rubber bowl |
q | Removing and installing → Body Work; Rep. Gr.55 |
10 - | Earth connection |
11 - | O-ring |
q | replace |
12 - | Vent valve |

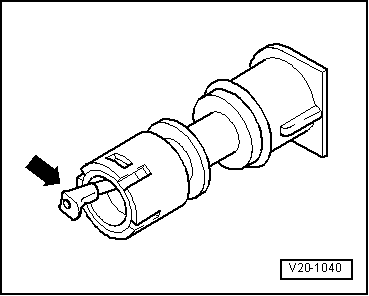

q | check → Fig. |
13 - | Gravity valve |
q | to remove, unclip valve and lift up and out of the filler neck |
q | inspect valve for blockage: |
q | Valve in a vertical position: open |
q | Valve tilted 45°: closed |
14 - | Activated charcoal filter |
q | Summary of components of activated charcoal container system → Chapter |
q | Check fuel tank ventilation → Chapter |
15 - | Vent line |
16 - | O-ring |
q | replace |
17 - | 10 Nm |
18 - | Circlip |
19 - | Heat shield |
q | for fuel tank |
20 - | 25 Nm |
q | replace |
21 - | Straps |
q | pay attention to different lengths |
22 - | Fuel feed line |
q | black |
q | from fuel filter to fuel distributor at intake manifold |
23 - | Fuel filter |
q | with integrated pressure limiting valve for fuel return-flow line |
Opening pressure: 0.40 MPa (4.0 bar) |
q | do not interchange connections |
q | The direction of flow of fuel is marked by arrow |
q | Fitting position: Pin at filter housing must engage in the recess of the guide at the filter holder |
24 - | Screw clamp |
q | for fuel filter |
25 - | Vent line |
q | to solenoid valve 1 for activated charcoal filter in engine compartment |
26 - | Vent line |
q | between activated charcoal filter Pos. 14 and vent line Pos. 25 |
