Fabia Mk2

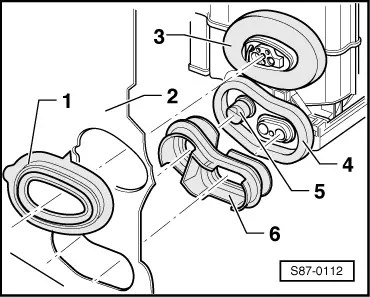

| Summary of components |
Note| The parts marked with an * must only be repaired in specialist service centres which have suitably trained personnel and are fitted out for working on the refrigerant circuit. |
| 1 - | Defroster vent |
| q | integrated in dash panel |
| 2 - | Centre dash panel vent |
| q | with warning light switch |
| q | removing and installing → Chapter |
| 3 - | Dash panel |
| q | Removing and installing → Body Work; Rep. gr.70 |
| 4 - | Side window vent |
| q | carefully lever out with disassembly wedge -3409- |
| 5 - | Outer dash panel vent |
| q | carefully lever out at top and bottom using the disassembly wedge -3409- |
| 6 - | Intermediate piece for defroster duct |
| q | attached to heater unit with locking pins |
| q | for removing, take out dash panel |
| 7 - | Centre part of dash panel |
| q | Removing and installing → Body Work; Rep. gr.70 |
| 8 - | Central pipe |
| 9 - | Intermediate piece for dash panel vents |
| q | attached to heater unit with clips |
| q | for removing, take out dash panel |
| 10 - | Right footwell vent |
| q | bolted to heater unit (1.5 Nm) |
| 11 - | Air conditioning unit* |
| q | removing and installing → Chapter |
| q | disassembling and assembling → Chapter |
| 12 - | Connection part for rear duct |
| 13 - | Rear duct |
| 14 - | End piece for rear duct |
| q | clipped into rear duct and seat cross member |
| 15 - | Ventilation frames |
| q | clipped into rear cross member ahead of spare wheel well from outside |
| q | sealing lips must operate freely and close automatically |
| q | Area in front of ventilation frames must be clear otherwise ventilation of interior does not operate |
| 16 - | Left footwell vent |
| q | bolted to support for central pipe (1.5 Nm) |
| 17 - | Gasket* |
| q | for connection of heat exchanger |
| q | in bulkhead (assembly plate) |
| q | Fitting position → Fig. |
| 18 - | Gasket* |
| q | for expansion valve connection |
| q | in bulkhead (assembly plate) |
| q | Fitting position → Fig. |
