Removing and installing the gearbox output r.p.m. senderG195

Removing and installing the gearbox output r.p.m. sender -G195-

Note

General repair information → Chapter.

WARNING

Observe measures when disconnecting and connecting the battery → Electrical System; Rep. gr.27.

Removing gearbox output r.p.m. sender -G195-

–	Disconnect the battery-earth strap with the ignition off → Electrical System; Rep. gr.27.

–	Removing the oil pan → Chapter.

–	Removing oil filter → Chapter.

–	Remove the slide valve body → Chapter.

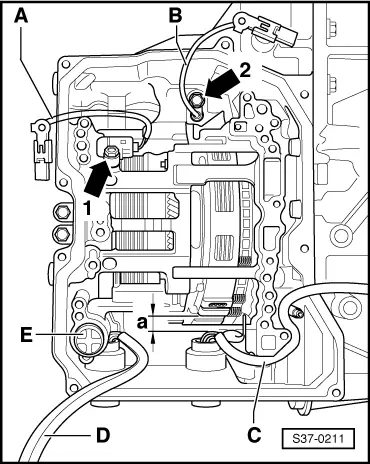

–	Release screw -2-.

–	Pull gearbox output r.p.m. sender -G195- with cable -B- out of the gearbox.

Installing gearbox output r.p.m. sender -G195-

Installation is performed in the reverse order, pay attention to the following points:

–	Moisten O-ring at sender with ATF.

–	Carefully press gearbox output r.p.m. sende -G195- up to the stop into the gearbox.

Tightening torque

Component	Nm
Gearbox input r.p.m. sender - G195- to gearbox, M5 screw	→ Chapter
