Fabia Mk2
|

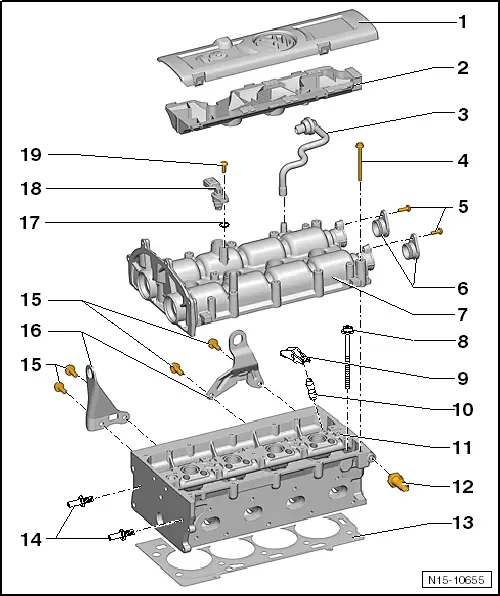

| 1 - | Cover for camshaft housing |
| 2 - | Cable guide |
| 3 - | to air filter housing |
| 4 - | 10 Nm + torque a further 90° (1/4 turn) |
| q | replace |
| q | tighten from inside to outside |
| 5 - | 10 Nm |
| 6 - | Caps for camshafts |
| 7 - | Camshaft housing |
| q | removing and installing → Chapter |
| q | Sealing surface to the cylinder head must be free of oil and grease. |
| 8 - | Cylinder head bolt |
| q | replace |
| q | observe the mounting instructions and sequence for loosening and tightening → Chapter |
| 9 - | Roller rocker arm |
| q | inspect roller bearings of roller for smooth operation |
| q | oil contact surfaces |
| q | to install, clip onto the supporting element and secure with locking clip |
| 10 - | Supporting element |
| q | do not interchange |
| q | with hydraulic valve clearance compensation |
| q | oil contact surfaces |
| 11 - | Cylinder head |
| q | removing and installing → Chapter |

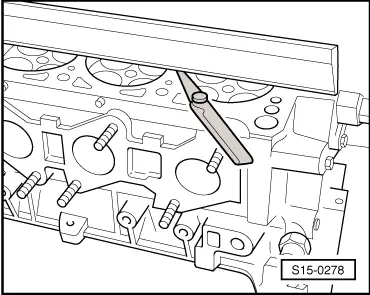

| q | check for distortion → Fig. |
| q | Sealing surface to the camshaft housing must be free of oil and grease. |
| q | after replacing fill entire system with fresh coolant |
| 12 - | Oil pressure switch -F1-, 25 Nm |
| q | 0.05 MPa (0.5 bar) |
| q | check → Chapter |
| q | Cut open gasket ring if leaking and replace |
| 13 - | Cylinder head gasket |
| q | replace |
| q | metal gasket |
| 14 - | Guide bolt |
| q | Tightening torque: 20 Nm |
| 15 - | 20 Nm |
| 16 - | Lifting eyes |
| 17 - | O-ring |
| q | replace if damaged |
| 18 - | Hall sender -G40- |
| 19 - | 10 Nm |
|
|
