Fabia Mk2
|
| Testing compression pressure → Chapter. |
Note| t | When installing a replacement cylinder head, all the contact surfaces between the supporting elements, roller rocker arms and the cam tracks must be oiled before installing the camshaft housing. |
| t | Do not remove the plastic bases supplied as a protection for the open valves until just before fitting on the cylinder head. |
| t | If the cylinder head is replaced, also the entire coolant must be replaced. |
| t | Disassembling and assembling intake manifold → Chapter. |

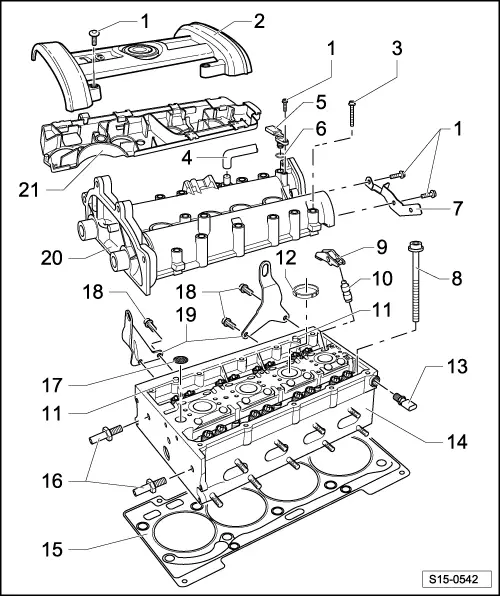

| 1 - | 10 Nm |
| 2 - | Cover for camshaft housing |
| 3 - | 10 Nm + torque a further 90° (1/4 turn) |
| q | replace |
| q | tighten from inside to outside |
| 4 - | to air filter housing |
| 5 - | Hall sender -G40- |
| 6 - | O-ring |
| q | replace if damaged |
| 7 - | Support |
| 8 - | Cylinder head bolt |
| q | replace |
| q | observe the mounting instructions and sequence for loosening and tightening → Chapter |
| 9 - | Roller rocker arm |
| q | inspect roller bearings of roller for smooth operation |
| q | oil contact surfaces |
| q | to install, clip onto the supporting element and secure with locking clip |
| 10 - | Supporting element |
| q | do not interchange |
| q | with hydraulic valve clearance compensation |
| q | oil contact surfaces |
| 11 - | Dowel pins |
| 12 - | Sealing ring |
| q | replace |
| q | 4 pieces |
| q | inserted into the cylinder head |
| 13 - | Oil pressure switch -F1-, 25 Nm |
| q | 0.05 MPa (0.5 bar) |
| q | check → Chapter |
| q | Cut open gasket ring if leaking and replace |
| 14 - | Cylinder head |
| q | removing and installing → Chapter |

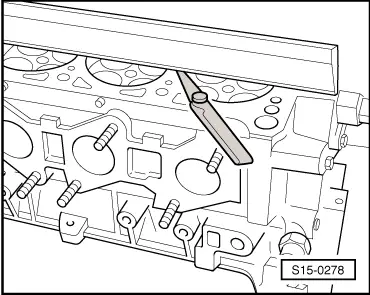

| q | check for distortion → Fig. |
| q | Sealing surface to the camshaft housing must be free of oil and grease. |
| q | after replacing fill entire system with fresh coolant |
| 15 - | Cylinder head gasket |
| q | replace |
| q | metal gasket |
| 16 - | Guide bolt |
| q | Tightening torque: 20 Nm |
| 17 - | Oil filter |
| q | inserted into cylinder head |
| q | replace |
| 18 - | 20 Nm |
| 19 - | Lifting eyes |
| 20 - | Camshaft housing |
| q | removing and installing → Chapter |
| q | Sealing surface to the cylinder head must be free of oil and grease. |
| 21 - | Cable guide |
| q | Screwed onto camshaft housing to 8 Nm |
|
|
