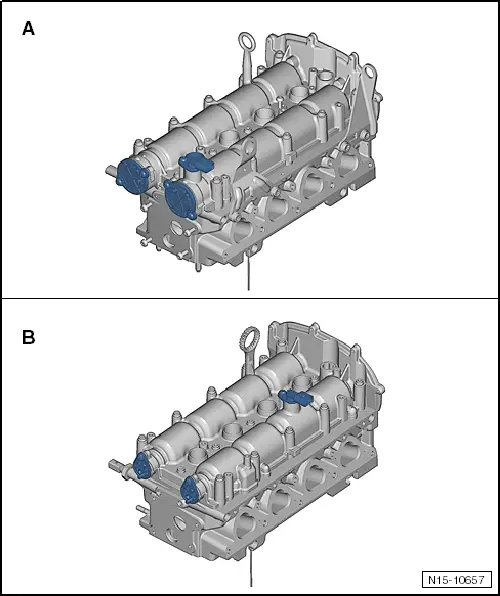

Distinguishing features of cylinder heads |
t
| The caps for the camshafts are screwed on with 2 screws. |
t
| The hall sender -G40- is installed behind the 4th cylinder. |
t
| Use the camshaft fixer/locator -T10171A- to check and set the timing. |
t
| The caps for the camshafts are screwed on with 1 screw. |
t
| The hall sender -G40- is installed behind the 2nd cylinder. |
t
| Use two fixing bolts -T10414- to check and set the timing. |
|
|
|
