Fabia Mk2

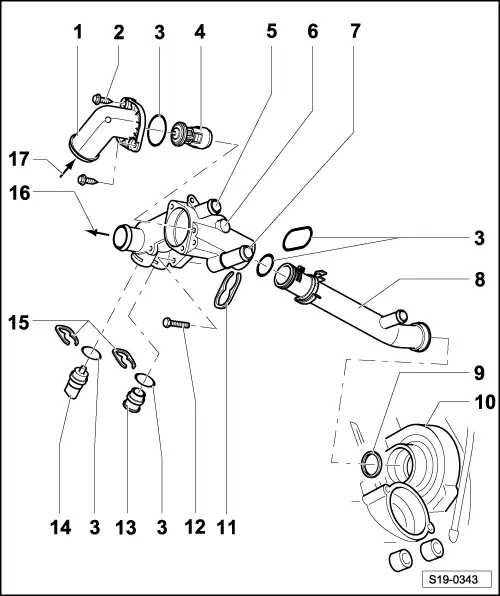

| Coolant regulator - Summary of components |
| 1 - | Connection fittings |
| 2 - | Self-tapping screw, 7 Nm |
| 3 - | O-ring |
| q | replace |
| 4 - | Coolant regulator |
| q | check: heat up regulator in a water bath |
| q | Start of opening approx. 84 °C |
| q | End of opening: approx. 98 °C |
| q | Opening stroke: at least 7 mm |
| 5 - | to heat exchanger of heating system |
| 6 - | Coolant regulator housing |
| 7 - | from heat exchanger of heating system |
| 8 - | Coolant pipe |
| 9 - | Sealing ring |
| q | replace |
| 10 - | Cooling pump housing at cylinder block |
| 11 - | Clamp |
| q | check tightness |
| 12 - | 10 Nm |
| 13 - | Screw cap |
| q | before removing, reduce pressure in cooling system if necessary |
| 14 - | Coolant temperature sender -G62- |
| q | before removing, reduce pressure in cooling system if necessary |
| 15 - | Clamp |
| q | check tightness |
| 16 - | to bottom radiator |
| 17 - | from top radiator |
