Octavia Mk1

Disassembling and assembling radiator grill
Disassembling and assembling radiator grill
Removing:
l  Radiator grill removed from vehicle

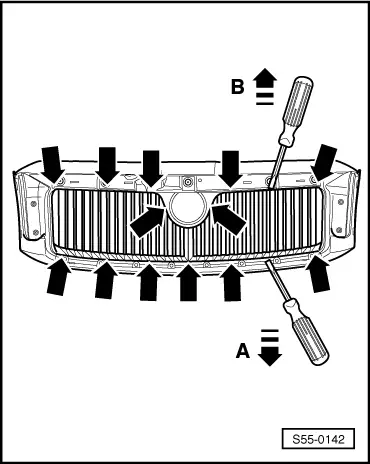

–  Release the lower clips of the decorative strip using a screwdriver in -direction of arrow A-.
–  Release upper clips of the decorative strip with a screw driver in -direction of arrow B- and remove decorative strip.
  S55-0142

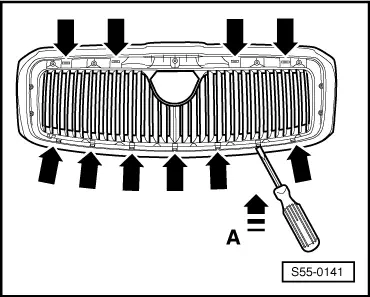

–  Release the clips -arrows- of the grid in -direction of arrow A- with screwdriver und remove grid from radiator grill frame.
Installing:
Installation is carried out in the reverse order. Pay attention to the following.
  Note
Clip individual parts of the radiator grille into one another.
  S55-0141
