Octavia Mk1

Remove and install front flap lock
Remove and install front flap lock

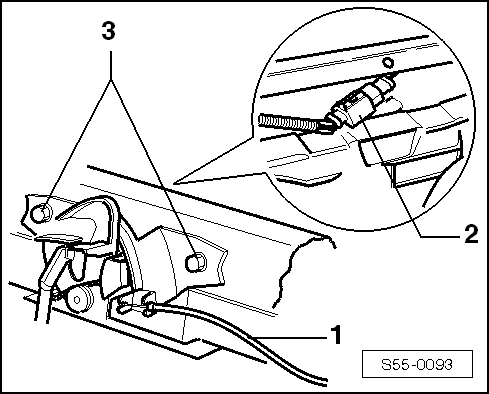

Removing:
–  Unclip the control cable -1- on the lock.

–  Disconnect the plug connection -2- from the front bonnet.
–  Remove screws -3- (14 Nm).
Installing:
Installation is carried out in the reverse order.
Adjusting:
l  Bonnet must be adjusted flush to the body.
l  Observe uniform gap sizes between bonnet and body.
l  Adjust the stop buffer and check the opening and closing of the bonnet.
  S55-0093
