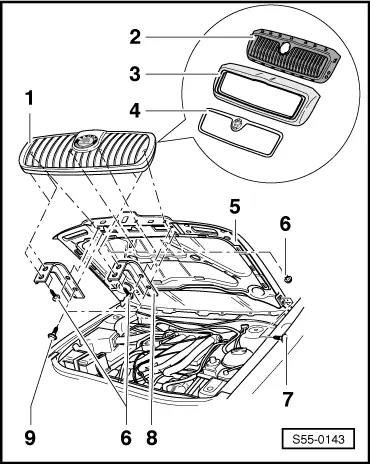

| Summary of front bonnet components |
| –
| Screw out screws -6- and -9- and remove radiator grill. |
| –
| Disassemble radiator grill in individual parts -2-, -3- and -4- → Chapter. |
| Installation is carried out in the reverse order. |
| After installation the radiator grill must be flush with the front flap. |
| –
| The tailgate can be adjusted by means of the oval holes in the hinges. |
| –
| After carrying out removal and installation or adjustment work, perform corrosion protection measures at the screws and hinges. |
|
|
|
