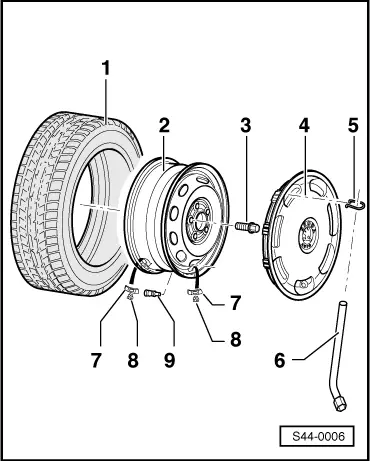

Disc wheel

Note

t	Because of design variations the disc wheel and wheel trim cap may differ from the figure.

t	When using anti-theft wheel bolts, the anti-theft bolt must be as close as possible to the valve.

1 -

Tyres

2 -	Wheel rims

t	6J x 14 H2, ET38

t	6J x 15 H2, ET38

3 -	Wheel screw, 120 Nm

4 -	Remove wheel trim cap

5 -	Pull-off hook

6 -	Wheel bolt key

t	included in tool kit

7 -	Balancing weights

t	max. 60 g allowed per rim flange

8 -	Retaining spring for balancing weights

9 -

Valve

t	only use valve in accordance with spare part catalogue
