Octavia Mk1
Note
|

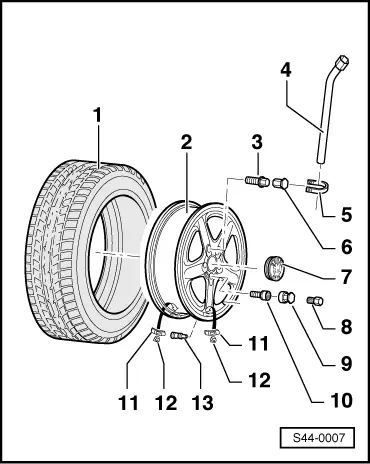

| 1 - | Tyres |
| 2 - | Light-alloy rim |
| t | 6J x 15H2, ET38 |
| t | 6.5J x 15 H2, ET43 |
| t | 6.5J x 16 H2, ET42 |
| 3 - | Wheel screw, 120 Nm |
| 4 - | Wheel bolt key |
| 5 - | Pull-off shackle |
| t | included in tool kit |
| 6 - | Cap |
| 7 - | Wheel trim cap |
| 8 - | Adapter for anti-theft wheel bolt |
| 9 - | Cap for anti-theft wheel bolt |
| 10 - | Anti-theft wheel bolt, 120 Nm |
| 11 - | Balancing weights |
| t | max. 60 g allowed per rim flange |
| 12 - | Retaining spring for balancing weights |
| 13 - | Valve |
| t | only use valve in accordance with spare part catalogue |
