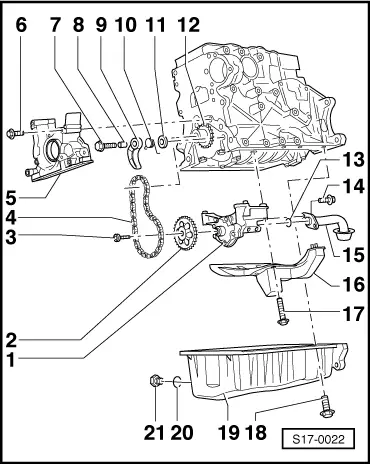

| Removing and installing parts of the lubrication system |
Note | t
| If considerable quantities of metal swarf or abrasion is found in the engine oil when carrying out engine repairs, carefully clean the oil galleries in order to avoid consequential damage and additionally replace the oil cooler. |
| t
| The engine oil level must never exceed the max. marking - risk of damage to catalytic converter! |
| Check the engine oil, amount of oil, oil specification: → Octavia |
| –
| Duocentric pump with pressure relief valve 1.2 MPa (12 bar) |
| –
| Before installing, check whether both dowel sleeves for centering oil pump/cylinder block are present |
| –
| if there is any scoring on contact surfaces and gears, replace |
| –
| Torque of oil pump cover at oil pump housing: 10 Nm |
| –
| Fits onto oil pump shaft in one position only |
| –
| coat with silicone sealant -D 176 404 A2- → Chapter |
| –
| replace the gasket ring for the crankshaft → Chapter |
| –
| together with pos. 7, 8, 10 and 11 |
| –
| Clean strainer if dirty |
| –
| loosen and tighten with hinged wrench and socket insert |
| –
| install with silicone sealant -D 176 404 A2- → Chapter |
| 21 - | Oil drain plug, 30 Nm |
|
|
|
